Yokomo BD5 Front Battery Conversion CS Set Up / Video Clip

Postby Katsumi » Thu Jan 20, 2011 12:25 pm

Hi guys

I introduced to my BD5 front Battery conversion.
This idea come from my blog friend.
He did his Cyclone TC like Ulz did.
viewtopic.php?f=34&t=1062

I feel like so stable and easy to make a big CS with less overdrive set up.

I convert from BD5P, "P" mean straight pack battery chassis.
If convert from BD5W less parts need it

I will post how to make this mod later


Make: Yokomo
Model: BD5P

Date: Jan 16th 2011
Spec Changed March 28th 2011
Track surface: Polished concrete
Tire: New Yokomo 01R2
Motor & ESC: Yokomo BL-Pro with 17.5 Motor
Battery: Yokomo Stick Pack Type Lipo 4000mha

Front

Camber:-6 -3
Toe: IN 0
Kick up: None Front 3mm Rear 1mm
Caster Setup: Stock C Hub Yokomo DRB Aluminum 10 deg C Hub
Ride height: 5mm 4mm
Springs: Yokomo Titan Super Soft Yokomo Black ( DP Type-A original )
Bumper weight: 0
Trailing Steering Block: Stock Yokomo DRB Aluminum Steering Block DRB-415S1 Ball Stud in the out side hole
Sway-Bar: None
Shock Oil: Yokomo #200
Other:

Rear

Camber: -1
Toe: in 2.0 Toe Block
Kick up: Front 1mm Front 2mm Rear 1mm
Ride height: 7.5mm 3mm
Springs: Yokomo Titan Super Soft
Sway-Bar: None
Shock Oil: Yokomo #150
Other:

Drive Train

Gearing: Front Stock 40x20 Rear Yokomo FCD 1.5 20x27 Overdrive ratio 1.48
Front 42(Kawada)x20 Rear Yokomo FCD 1.5 20x27 Overdrive ratio 1.56
Front: BD One-Way Mod to fit.
Center: Direct
Rear: Yokomo FCD 1.5 Axle
Spar: 48pt 80t.
Pinion: 48pt 23t
Other:





Katsumi
Site Mod
Site Mod
Posts: 349
Joined: Wed Jan 06, 2010 3:04 pm
Drift Chassis: Yokomo BDM. CGM. DM. DP.
Location: Stanton, CA
Contact:

Re: Yokomo BD5 Front Battery Conversion CS Set Up

Postby Katsumi » Thu Jan 20, 2011 12:26 pm

How to build Front Battery Conversion My BD5.

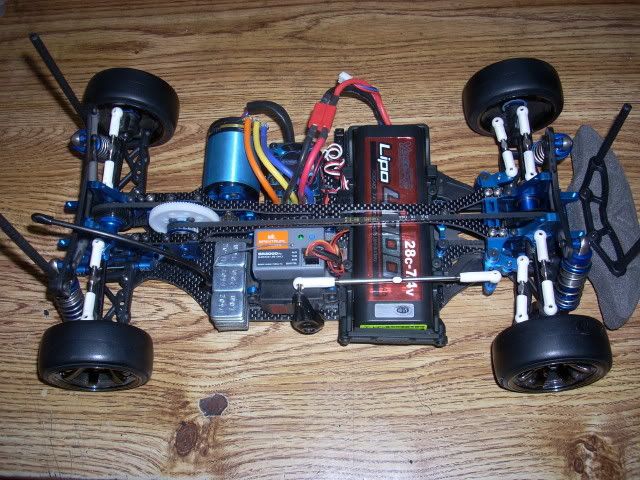

My BD5P over view

Steering lock BD5 normal.

I wanted to make fit any type of super gear, that way I converted it in BD5W
Because the motor mount of BD5, you must have attach super gear of BD5.

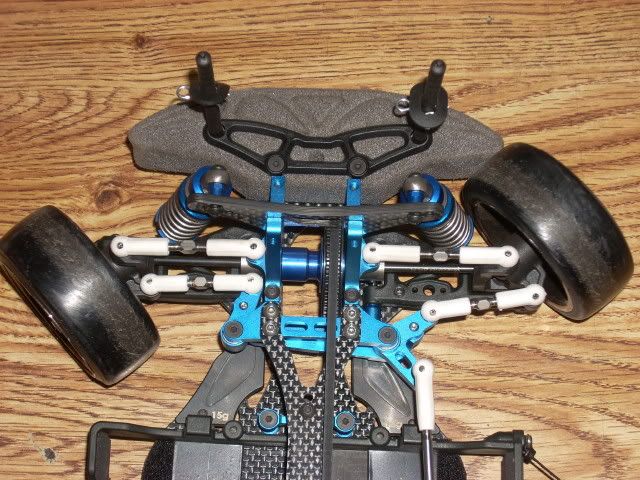

I installed a steering linkage of DRB in BD5.
An upper deck higher by 3mm
And I used DRB Steering block.

I changed DRB front lower A arm.

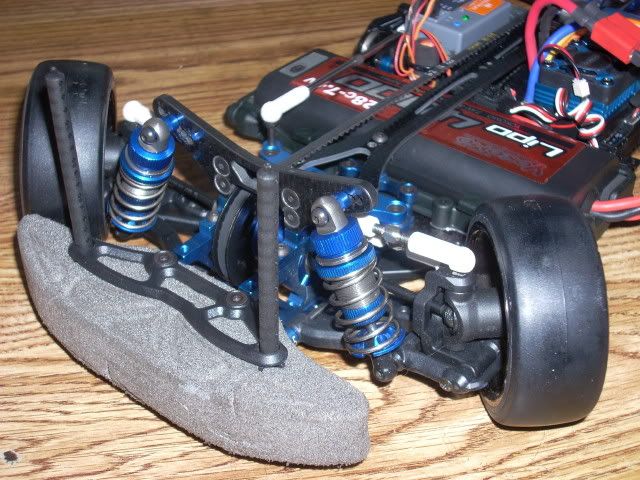

The bottom of the pick is BD5. A shock position is out.
A tire and a shock hit it when they locked a steering fully.

I changed a motor mount of BD5W and put a spacer of 3mm below
I can make fit big super gear and motor was higher then roll center going up.

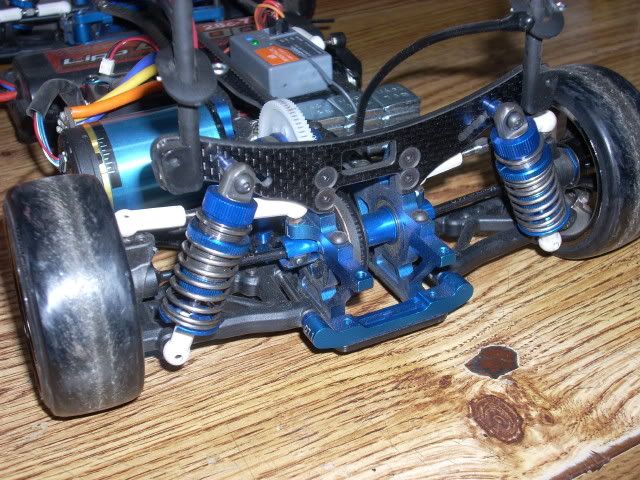

I put a spacer of 3mm in the upper part of the bulkhead of the rear.

I attached a plate under a battery holder of DRB and put it in velcro in a chassis.
Battery holder was higher and making a space of a drive belt.
I set a DRB 14T idler pulley in a chassis.

I set DRB FCD1.5 in the rear, It was 56T belt fit well.


Here is listed I used parts bellow.

Those parts not necessary if convert from BD5W
1x BD-003W - BD5W World Spec Upper Deck
1x BD-302LW - BD5W World Spec Center Bulkhead
1x BD-302SW - BD5W World Spec Center Bulkhead Support
1x BD-BWF - BD5W World Spec Front Balance Weight.

I used DRB Steering linkage and Front Suspension.
1x DRB-202C - DRB Steering Bell Crack Center Link
1x DRB-202L - DRB Steering Bell Crank LH
1x DRB-202P - DRB Steering Bell Crank Post
1x DRB-202R - DRB Steering Bell Crank RH
1x DRB-206W - DRB Rod End Plastic Parts
1x SD-414S - Short King Pin Set
1x DRB-415 - DRB Steering Brock
1x DRB-008F - DRB Front Suspension Arm

CS set up parts.
1x BD-640T - HD Front One-Way Assembly
( I switched one-way bearing )
1x BD-640W - BD5W World Spec Front One Way
1x DRB-FCD15 - Full Counter Solid Axle Set 1.5 for DRB

Other
1x DRB-018 - DRB Rear Shock Tower
( I want to make a same position of body post and more shock position. )
1x DRB-118 - DRB Battery Holder
1x DRB-RBIP4 - DRB Iedler Pullrey 14t
1x BD-203 - Aluminum Servo Mount
2x ZC-A3630 - Aluminum Shim 3mm
1x ZC-TB20 - Turnbuckle Titanium 20mm
1x ZS-016 - Body Mount Set
( BD5 Body post was 6mm )
Thanks

Banggotan
Still Turns In
Still Turns In
Posts: 122
Joined: Thu Jan 14, 2010 8:49 pm
Drift Chassis: Streetjam OTA-R31 CS1.83
Location: Indonesia

Re: Yokomo BD5 Front Battery Conversion CS Set Up

Postby Banggotan » Thu Jan 20, 2011 4:10 pm

Looks awesome, Katsumi!
[Wanten Junkies Syndicate]
[Yokomo DRB : Ketsukaki 1.85 + 50 Degrees Steering Lock]
http://www.rcdorishop.com

Katsumi
Site Mod
Site Mod
Posts: 349
Joined: Wed Jan 06, 2010 3:04 pm
Drift Chassis: Yokomo BDM. CGM. DM. DP.
Location: Stanton, CA
Contact:

Re: Yokomo BD5 Front Battery Conversion CS Set Up

Postby Katsumi » Thu Jan 20, 2011 11:34 pm

Thanks !

User avatar
tokeyo83
Banned and Dumb
Posts: 542
Joined: Wed Jan 06, 2010 2:23 am
Drift Chassis: HB Cyclone TC-H / Yokomo MR4-TC DP (WIP)
Location: Artesia, Ca

Re: Yokomo BD5 Front Battery Conversion CS Set Up

Postby tokeyo83 » Fri Jan 21, 2011 2:28 am

this thing is awesome :up: super stable and w little cs ratio and get's really good cs action :twisted: no need for a front mounted motor :lol:
"there are no stupid questions, just stupid people"

Katsumi
Site Mod
Site Mod
Posts: 349
Joined: Wed Jan 06, 2010 3:04 pm
Drift Chassis: Yokomo BDM. CGM. DM. DP.
Location: Stanton, CA
Contact:

Re: Yokomo BD5 Front Battery Conversion CS Set Up

Postby Katsumi » Mon Jan 24, 2011 12:57 am

I made positive camber set up


I used
DRB-415S1 - DRB Aluminum Steering Block
DRB-413A1 - DRB Aluminum C Hub 10 deg
ZC-TB16 - Turnbuckle Titanium 16mm
and I put on 2mm spacer front suspension mount of front

and I changed SD shocks.

I need still tuned my BD5, I post spec change later.

User avatar
beetledrift
Rally Style Drifting
Rally Style Drifting
Posts: 39
Joined: Fri Jan 28, 2011 4:57 pm
Drift Chassis: Tamiya TRF415 MSX MRE
Location: netherlands

Re: Yokomo BD5 Front Battery Conversion CS Set Up

Postby beetledrift » Sat Jan 29, 2011 6:20 pm

Hi,
that's a nice project u made there!
But can you tell me, why do u run positive camber?

Katsumi
Site Mod
Site Mod
Posts: 349
Joined: Wed Jan 06, 2010 3:04 pm
Drift Chassis: Yokomo BDM. CGM. DM. DP.
Location: Stanton, CA
Contact:

Re: Yokomo BD5 Front Battery Conversion CS Set Up

Postby Katsumi » Sat Jan 29, 2011 10:05 pm

Thanks

Don't you think more realistic ?
The camber when a wheel is straight is -3 degrees and full lock is +4 degree.

Few Japanese people began this setup in Japan.

I love the more realistic !

User avatar
Murdock
Still Turns In
Still Turns In
Posts: 254
Joined: Sat Nov 27, 2010 5:14 am
Drift Chassis: VDF, DRB, TCX, E4FS, R31
Location: Norcal, California

Re: Yokomo BD5 Front Battery Conversion CS Set Up

Postby Murdock » Sat Jan 29, 2011 10:12 pm

Awesome Mod!
MST - MS-01D Pro - Build thread click HERE
Tamiya - TA05VDF - Build thread click HERE
HB/HPI - TC-FD - Build thread click HERE
Yokomo - SSG DRB - Build thread click HERE

Katsumi
Site Mod
Site Mod
Posts: 349
Joined: Wed Jan 06, 2010 3:04 pm
Drift Chassis: Yokomo BDM. CGM. DM. DP.
Location: Stanton, CA
Contact:

Re: Yokomo BD5 Front Battery Conversion CS Set Up

Postby Katsumi » Tue Mar 29, 2011 5:52 pm

New Spec in above

Filming at Arai March 28th 2011


User avatar
Automatix
Rally Style Drifting
Rally Style Drifting
Posts: 83
Joined: Sat Jan 15, 2011 8:51 pm
Drift Chassis: TA06 overdosed & Yokomo DIB
Location: Moscow / Vienna

Re: Yokomo BD5 Front Battery Conversion CS Set Up add Viid Clip

Postby Automatix » Tue Mar 29, 2011 11:12 pm

On the video I can see that you found a great setup - seems to handle very sweet your chassis, special at transistions!
Great job, I like the mod with the DRB steering links ;)
Thanks for sharing

artica
Rally Style Drifting
Rally Style Drifting
Posts: 78
Joined: Fri Sep 10, 2010 12:35 am
Drift Chassis: Eagle Racing R31-16FM
Location: Concord, North Carolina

Re: Yokomo BD5 Front Battery Conversion CS Set Up add Viid Clip

Postby artica » Wed Apr 06, 2011 2:26 pm

Does the positive caster effect make the driving any different?

Katsumi
Site Mod
Site Mod
Posts: 349
Joined: Wed Jan 06, 2010 3:04 pm
Drift Chassis: Yokomo BDM. CGM. DM. DP.
Location: Stanton, CA
Contact:

Re: Yokomo BD5 Front Battery Conversion CS Set Up add Viid Clip

Postby Katsumi » Wed Apr 06, 2011 6:58 pm

I edit, you ask me positive camber right?
The set up is different diving style and makes more difficult, because it a car makes easy to going steer side.
You have to change car set up and your hand. :up:

I want to try more realistic RC Drifting.
I try to make a video clip edit more realistic RC Car Drifting next time.

hamster82
Rally Style Drifting
Rally Style Drifting
Posts: 39
Joined: Fri Aug 13, 2010 12:09 am
Drift Chassis: TRF 416
Location: Singapore

Re: Yokomo BD5 Front Battery Conversion CS Set Up add Viid Clip

Postby hamster82 » Thu Apr 07, 2011 10:48 am

Totally agree with the set-up as it gives a more realistic feel, i am using the same type of set-up right now for my VDF, will post as a new topic for fellow VDF as a reference
