danhfvcsd's Yokomo Hyper SSG DRB

Postby danhfvcsd » Tue Jun 28, 2011 11:47 pm

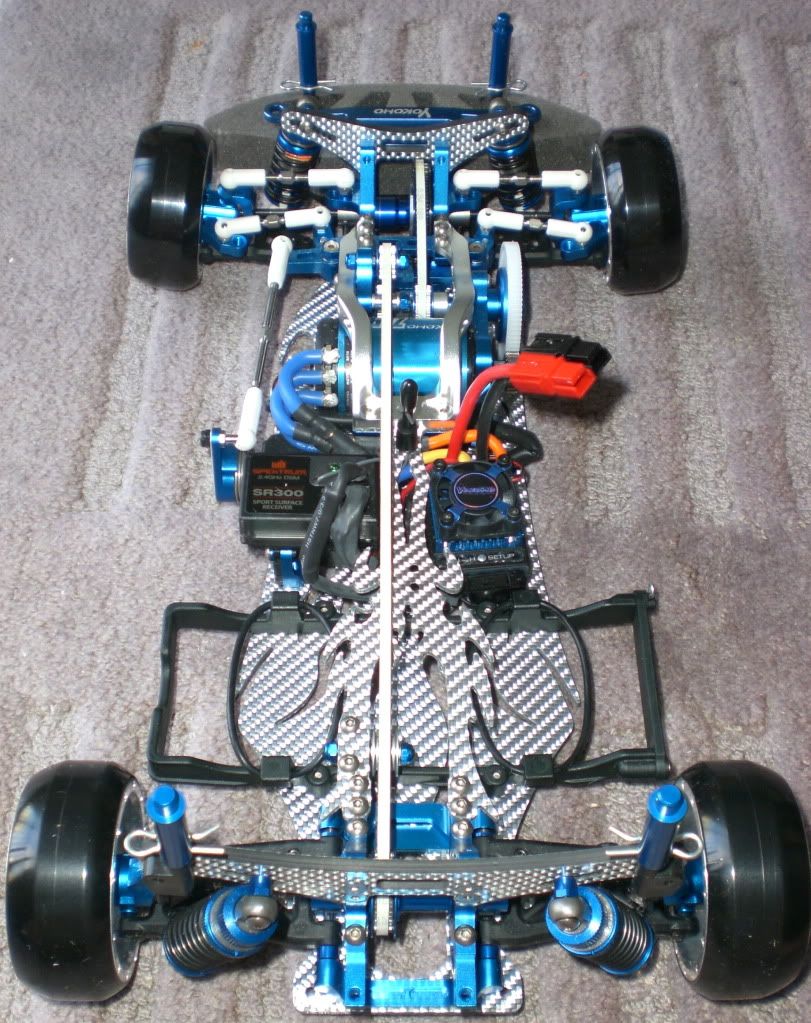

Make: Yokomo
Model: DRB - Hyper SSG Edition

Date: 29 June 2011
Track Surface: Marine Carpet
Tire: Spice
Motor: Yokomo Zero 10.5t 4500kv Motor
ESC: Yokomo Pro2
Servo: Futaba S9451
Battery:
* Turnigy 5000mah 20-30C Lipo
* Turnigy 5000mah 30-40C Lipo
* Turnigy 5200mah 30-40c Lipo

Front

Camber: -7.5*
Toe: 0*
Kick-Up: None
Caster hubs: 10 Degree Aluminium C-Hubs
Ride height: 6.5mm
Springs: Yokomo HSS Long Shock Spring - Orange (YS-1480)
Bumper weight: 50g
Sway-Bar: None
Shock Oil: 60wt Associated Oil

Other:
* Running 44.0mm Rear CVDs (#BD-010R)
* Shock Parts...
-Yokomo TiNi Shock Shafts (#YS-53S-4T)
-Yokomo Black Fluorine Diaphrams (#YS-8HD)

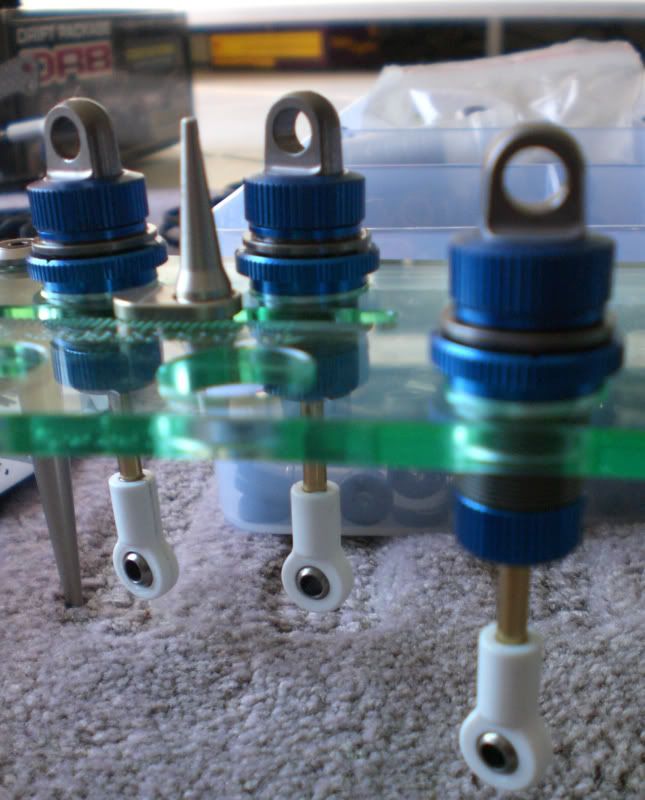

-Yokomo White Rod Ends mounted on bottom of shocks (The ones that the little ball snaps into... pics below)
* Yokomo Aluminium 7* Ackerman Steering Block

Rear

Camber: -2*
Toe: 0*
Anti-Squat: 6mm
Ride height: 8mm
Springs: Yokomo HSS Long Shock Spring - Yellow (YS-1290)
Sway-Bar: None
Shock Oil: 25wt Associated Oil

Other:
* Same Shock mods as the Front
* Yokomo 44mm C-Clip Type cvd's installed
* Yokomo Aluminium Rear Hubs (0*)
* Yokomo 0* Toe Suspension Mounts

Drive Train

Gearing: FRONT - Stock -------- REAR - Yokomo 1.8 FCD Kit
Front: One-Way
Center: Stock
Rear: Yokomo FCD 1.8 Axle Spool
Spur: 80T (48P)
Pinion: 25T i think? forget (48P)

Other (Incl. parts):
* Using 2 screws (in outer holes) @ the Rear of the Aluminium Bridge/Front of the Rear Upper Carbon Deck (Chassis Stiffness Adjustment)
* Yokomo Aluminium Bumper Support
* Yokomo Aluminium Adjustable Body Posts
* Yokomo White Ballcups
* Team Bomber Low Friction belts
* Overdose Chassis Set
* Overdose Servo Saver

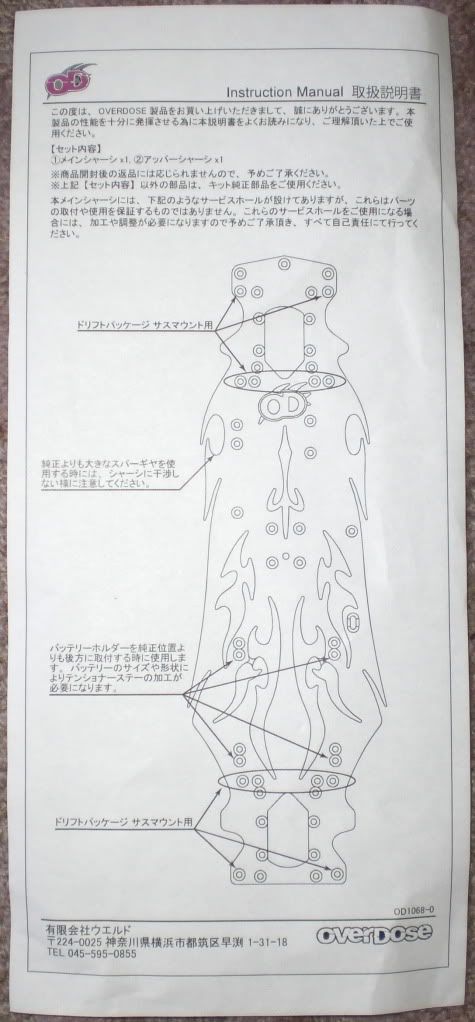

btw... Do we have a translator about the place? I notice the Overdose chassis has adjustment for the battery placement (to the rear from stock position, my packs wont fit this way tho, as they're a bit tall to pass under the rear belt tensioner on the upper deck) but there are a few other new holes i am unsure of??
Yokomo DRB 100% CS

Katsumi
Site Mod
Site Mod
Posts: 349
Joined: Wed Jan 06, 2010 3:04 pm
Drift Chassis: Yokomo BDM. CGM. DM. DP.
Location: Stanton, CA
Contact:

Re: danhfvcsd's Yokomo Hyper SSG DRB

Postby Katsumi » Wed Jun 29, 2011 12:11 am

Other holes fit to SD ( DP, Drift Master, LCG, and BDM ) suspension mount.

SD A arm longer than DRB A arm. I'm interesting this.

User avatar
danhfvcsd
Still Turns In
Still Turns In
Posts: 421
Joined: Sun Apr 18, 2010 2:53 pm
Drift Chassis: Yokomo DRB
Location: Gold Coast - Australia

Re: danhfvcsd's Yokomo Hyper SSG DRB

Postby danhfvcsd » Wed Jun 29, 2011 5:11 am

ahhhh cheers man, that makes more sense to me now =) Please let me know how you go if you try those sd arms man! =)
Yokomo DRB 100% CS

User avatar
Murdock
Still Turns In
Still Turns In
Posts: 254
Joined: Sat Nov 27, 2010 5:14 am
Drift Chassis: VDF, DRB, TCX, E4FS, R31
Location: Norcal, California

Re: danhfvcsd's Yokomo Hyper SSG DRB

Postby Murdock » Wed Jun 29, 2011 1:56 pm

*Thumbs Up*
