RE-Xtreme Tamiya TA-06 CS 1.8

Post your full Counter-Steer setup specs here.
User avatar
RE-Xtreme
CSJ VIP
Posts: 155
Joined: Tue Oct 25, 2011 7:48 am
Drift Chassis: Dp SSG 1.8, DRB 1.5, DIB 275 1.8
Location: Australia
Contact:

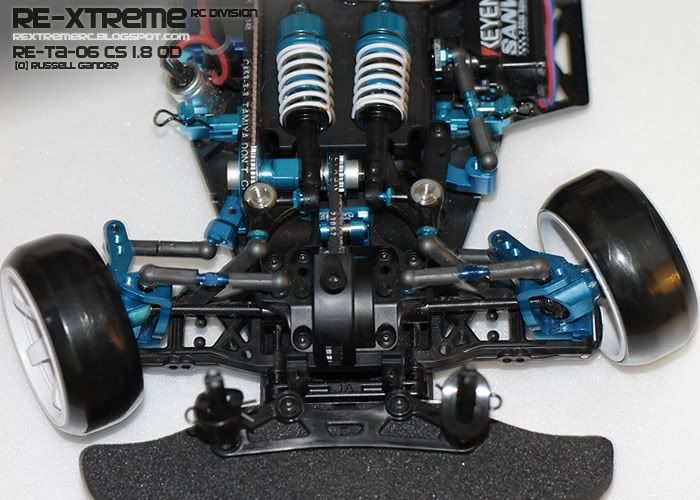

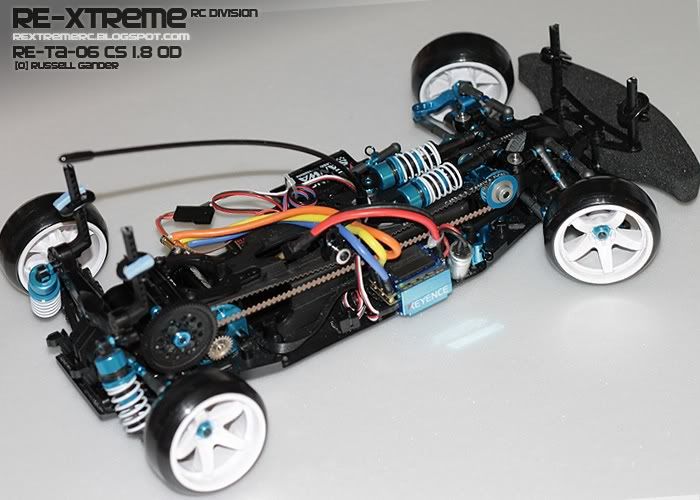

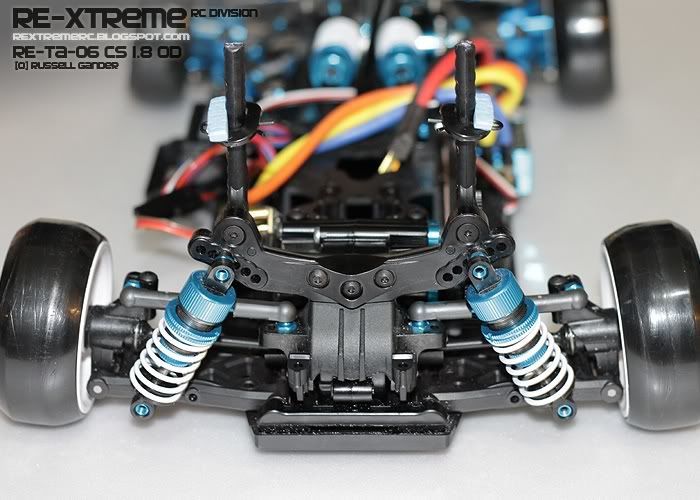

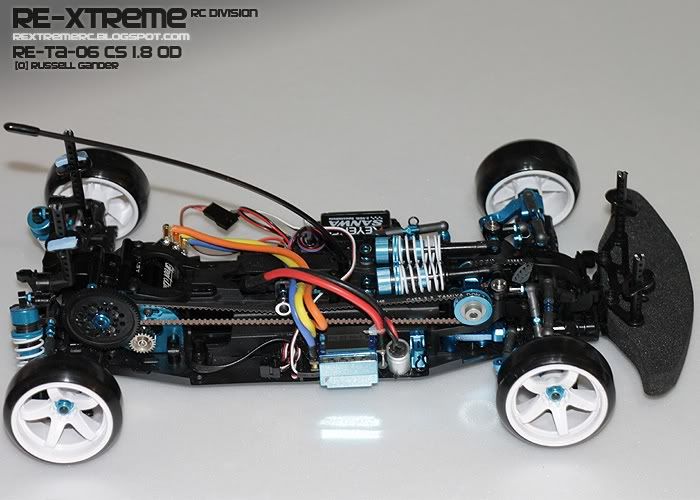

RE-Xtreme Tamiya TA-06 CS 1.8

Postby RE-Xtreme » Sat Feb 11, 2012 9:10 am


Make: Tamiya
Model: TA-06 Pro Kit + Mods.

Date: Feb 2012
Track surface: Carpet (MAX ONE)
Tire: Spice Reversible for Carpet
Motor & ESC: Keyence Luxon KG 7.5T & Keyence Tachyon Street Jam Version
Sanwa MT4 with SRG-BL Servo

Front

Camber: 9
Toe: 2 degree toe out
Kick up:
Caster hubs: Overdose 8 degree
Ride height: 5.5
Springs: Normal for now
Bumper weight:
Steering : Overdose
Sway-Bar: none
Shock Oil: Yokomo 400
Other: Active slow rebound pistons

Rear

Camber: 7
Toe: 2 degree toe in
Kick up:
Ride height: 5
Springs: Normal
Sway-Bar: None
Shock Oil: Yokomo 400
Other: Active slow rebound pistons

Drive Train

Gearing:

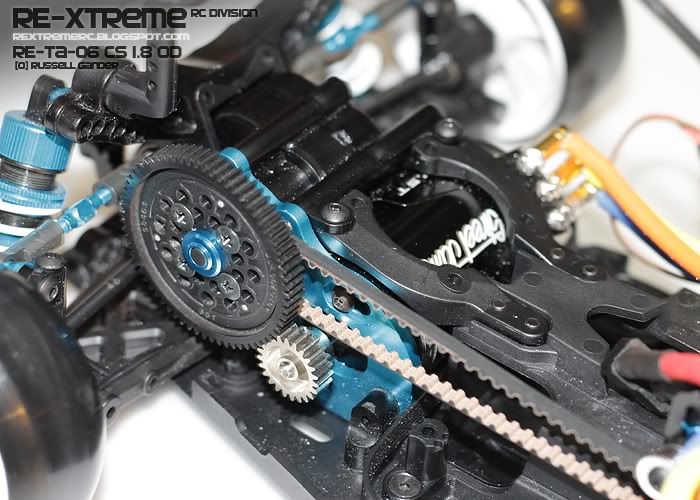

Front: Eagle One-Way 39T with my own design custom tensioner
Center: Square 13T -> 20T in Eagle Mount
Rear: Tamiya 16T + Eagle rigid Axle in stock gear case.
Spar: stock for now
Pinion: stock for now
Other: CS works about to be 1.73 exactly

I like CS around 1.8 for my cars.


This is a new chassis and I'm still working on the setup so these will change.
But just to give you guys a feel that the TA-06 is really popular in Japan right now.
They are currently the must have chassis.

It's great with OTB shocks (shakedown) but it will be tuned a bit more over the coming weeks until I'm happy indoor.
Then I'll take this one on Asphalt. The plastic chassis will get some abuse.


Wheels are +9 front and +12 rear

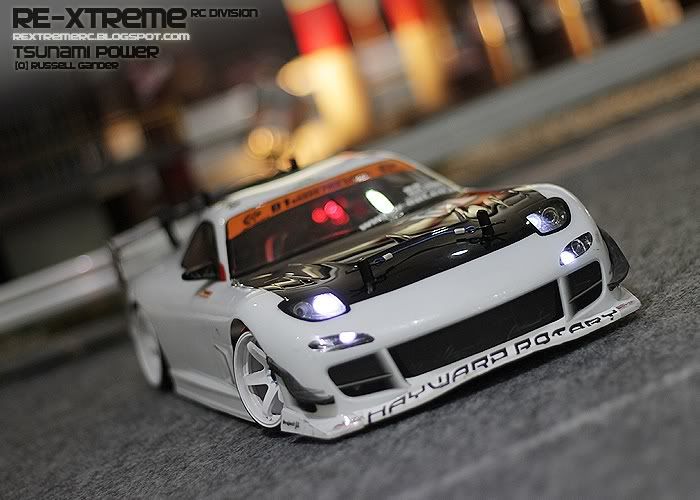

Body is HPI 200mm FD3s rx7

This is almost as good out of the box as my DRB with a lot of hours spent on suspension settings.
I think it can only get better.
Last edited by RE-Xtreme on Sun Feb 12, 2012 5:52 am, edited 1 time in total.
Visit me for more info on http://rextremerc.blogspot.com/

User avatar
Davis
Still Turns In
Still Turns In
Posts: 224
Joined: Mon Dec 06, 2010 12:33 pm
Drift Chassis: TA06 D-Spec & R-OTA R31
Location: Duisburg, Germany

Re: RE-Xtreme Tamiya TA-06 CS 1.8

Postby Davis » Sat Feb 11, 2012 9:29 am

RE-Xtreme wrote:This is almost as good out of the box as my DRB with a lot of hours spent on suspension settings.


Serious? - Well it´s not quite out of the box as I see with the overdose hubs and steering. But still, interesting, I would have imagined the weight distribution not that suitable for drifting with the motor in the rear. - Nice photos by the way.

marshun
Still Turns In
Still Turns In
Posts: 196
Joined: Mon Feb 07, 2011 2:00 am
Drift Chassis: yokomo drift package
Location: hawaii

Re: RE-Xtreme Tamiya TA-06 CS 1.8

Postby marshun » Sat Feb 11, 2012 10:28 am

Davis wrote:
RE-Xtreme wrote:This is almost as good out of the box as my DRB with a lot of hours spent on suspension settings.


Serious? - Well it´s not quite out of the box as I see with the overdose hubs and steering. But still, interesting, I would have imagined the weight distribution not that suitable for drifting with the motor in the rear. - Nice photos by the way.


set up matters more than anything.

chassis definitely looks cool. i always thought than type of front suspension would be good for steering angle. but i'd rather keep the motor up front myself.

User avatar
RE-Xtreme
CSJ VIP
Posts: 155
Joined: Tue Oct 25, 2011 7:48 am
Drift Chassis: Dp SSG 1.8, DRB 1.5, DIB 275 1.8
Location: Australia
Contact:

Re: RE-Xtreme Tamiya TA-06 CS 1.8

Postby RE-Xtreme » Sat Feb 11, 2012 4:12 pm

The chassis loves oversteer.

You can slide into corners from miles back with total control.

My friend's TA-06 has been corner weighted, balance is almost exactly 25% on each wheel. Corner weighted.

Steering needed to be changed.

But check out my blog, I've been working on it.

My issue is the stupid spur gear location on VDF/OTA/CER etc and
I had an RE-R and I switched to DRB and This chassis for that reason.
This is, as good, or better than that and I had to modify the RE-R a lot to get it to perform.

Here is a similar car in action.
Don't think rear engine is bad.
I definitely try before I buy.
http://www.youtube.com/watch?v=z67ySfIf ... r_embedded
Visit me for more info on http://rextremerc.blogspot.com/

bajaboy5b
Rally Style Drifting
Rally Style Drifting
Posts: 83
Joined: Tue Jul 27, 2010 4:29 am
Drift Chassis: 3 VDFs :P
Location: Australia

Re: RE-Xtreme Tamiya TA-06 CS 1.8

Postby bajaboy5b » Tue Feb 21, 2012 11:44 am

Looks awesome :up: You have made me want a TA06 now.

Can you give me any build tips? and are there any mods needed to CS or do grub screw pulley just bolt on stock?

Jeremy.
Team PINK!!!

User avatar
RE-Xtreme
CSJ VIP
Posts: 155
Joined: Tue Oct 25, 2011 7:48 am
Drift Chassis: Dp SSG 1.8, DRB 1.5, DIB 275 1.8
Location: Australia
Contact:

Re: RE-Xtreme Tamiya TA-06 CS 1.8

Postby RE-Xtreme » Wed Feb 22, 2012 8:26 pm

Hi Jeremy

You can go up to 1.5 pretty easily
39t stock front
15t - 18t on the centre
Vdf 16t belt pulley on the rear

Many guys are still running stock ball diff up front
With rigid rear

Some guys have taken the extreme route
With full square conversion and
41t in open bulkhead
12t-20t centre
16t rear
This gets to 2.0 cs

Mine is between these but still not straight forward

Overdose steering is recommended
I changed the centre pulley shaft to a slightly bigger one
And used a metal mount

Depending on brands
I'd plan to spend an extra 250 or so on top of the pro kit
for a decent setup

But they are very nice handling chassis

Everyone I know (about 15 now)
Says the same
Easy to drive

Russ
Visit me for more info on http://rextremerc.blogspot.com/

User avatar
RE-Xtreme
CSJ VIP
Posts: 155
Joined: Tue Oct 25, 2011 7:48 am
Drift Chassis: Dp SSG 1.8, DRB 1.5, DIB 275 1.8
Location: Australia
Contact:

Re: RE-Xtreme Tamiya TA-06 CS 1.8

Postby RE-Xtreme » Thu Feb 23, 2012 6:50 am

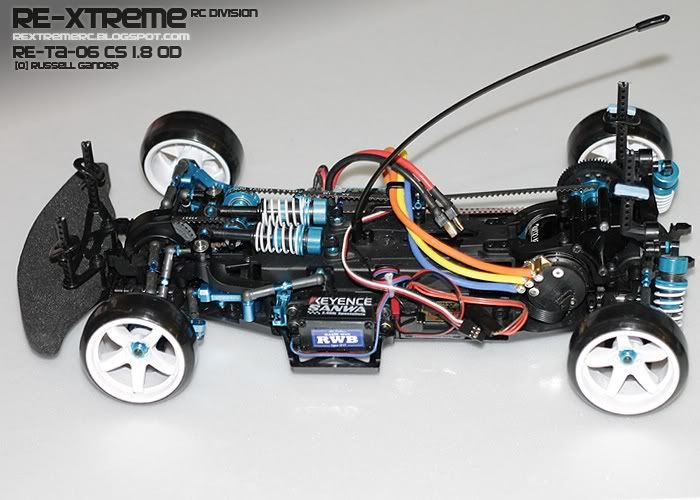

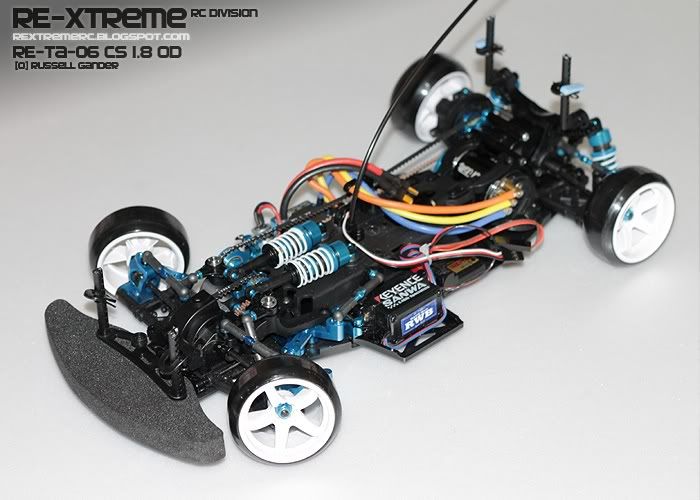

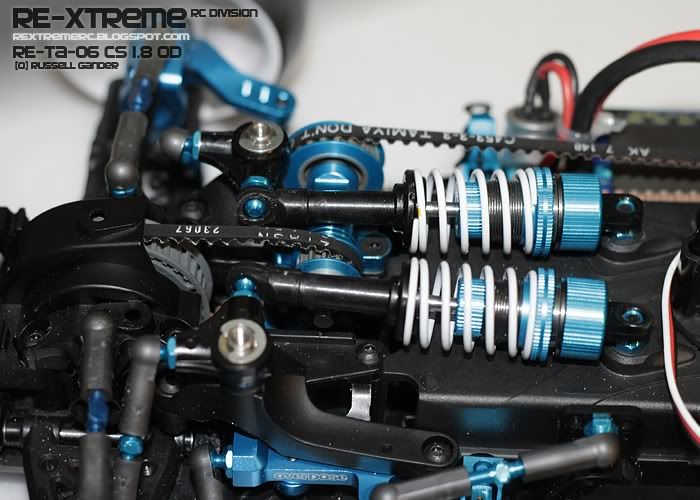

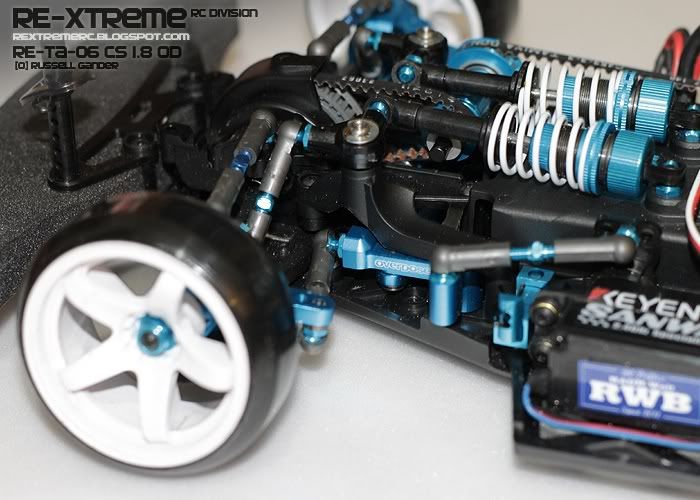

Here are some updates.

Front turnbuckles changed for more camber.
Overdose Spring seats
Springs Rear Kazama Soft.
Springs Front RC926 Ultrasoft

Upgraded Front tensioner with 11T ideler pulley

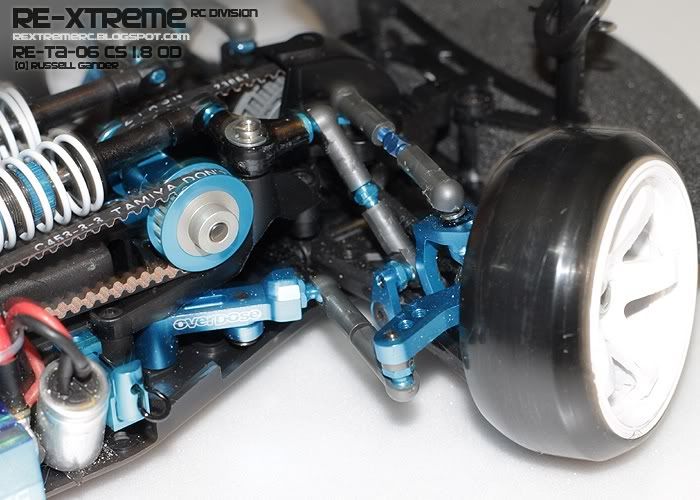

Overdose steering is awesome.

Some decals on the chassis
I reversed the servo and eliminated a lot unnecessary stuff.

Full Kawada Steel HEX screw set. Thank GOD for that!

Don't worry about the different tyres. Just for pix.

I've also changed the rear mount for a modified carbon VDF item.


Now running with RC296 Carpet tyres with +12 all round. Front has -2mm wheel hub for +10 on the Celica XX (Supra).
Visit me for more info on http://rextremerc.blogspot.com/

bajaboy5b
Rally Style Drifting
Rally Style Drifting
Posts: 83
Joined: Tue Jul 27, 2010 4:29 am
Drift Chassis: 3 VDFs :P
Location: Australia

Re: RE-Xtreme Tamiya TA-06 CS 1.8

Postby bajaboy5b » Thu Feb 23, 2012 7:41 am

Thanks Russ.

Can't wait to get mine as i'm basing my build on yours :p

Jeremy.
Team PINK!!!

User avatar
Murdock
Still Turns In
Still Turns In
Posts: 254
Joined: Sat Nov 27, 2010 5:14 am
Drift Chassis: VDF, DRB, TCX, E4FS, R31
Location: Norcal, California

Re: RE-Xtreme Tamiya TA-06 CS 1.8

Postby Murdock » Thu Feb 23, 2012 9:58 am

:up:
MST - MS-01D Pro - Build thread click HERE
Tamiya - TA05VDF - Build thread click HERE
HB/HPI - TC-FD - Build thread click HERE
Yokomo - SSG DRB - Build thread click HERE
