antinnous' TA05 // P2020

Postby antinnous » Fri May 18, 2012 12:54 am

Make: Tamiya / Penguin
Model: TA-05 / P2020

Date: 05/17/12
Track surface: Smooth asphalt
Tire: HPI T-Drift
Motor & ESC: HobbyWing Xerun 8.5t & Justock 45amp ESC

Front
Camber: -4.7*
Toe: 0*
Kick up: n/a
Caster hubs: n/a
Ride height: 11mm
Springs: Yeah Racing soft
Bumper weight: 196g
Trailing Steering Block: Shortened
Sway-Bar: n/a
Shock Oil: 30wt lucas
Other: one-way, c-hub delete, 10* caster

Rear
Camber: -2.7*
Toe: 0*
Kick up: n/a
Ride height: 12mm
Springs: Stock ta05
Sway-Bar: 1.55mm (stiffest)
Shock Oil: 30wt lucas
Other: spool, 111t/333mm belt

Drive Train
Gearing: 1.96 (96.43%)
Front: 40t
Center: F: 16t / R: 22t
Rear: 28t
Spur: 104t
Pinion: 33t
Other: CS FDR: 6.19, Setup for hot rear tires.

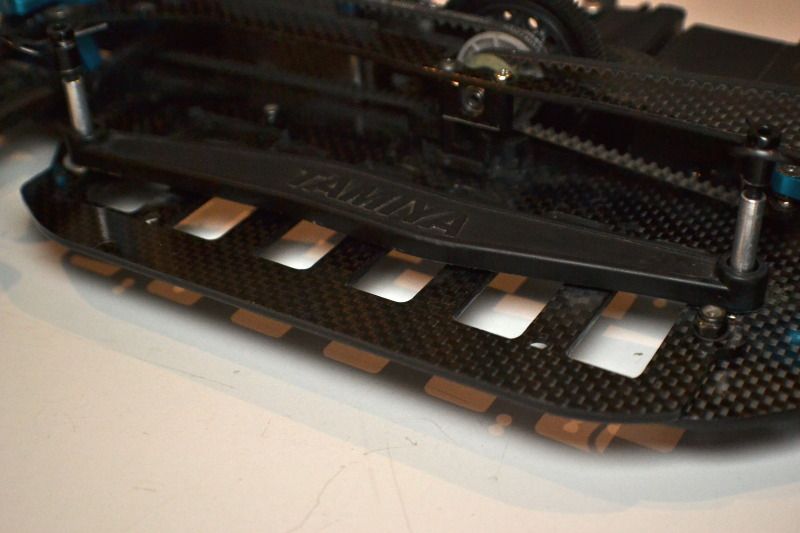

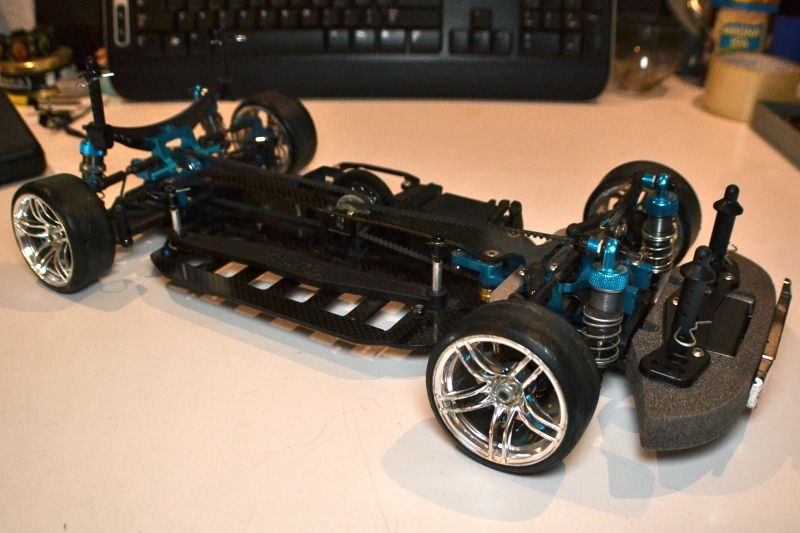

The Chassis:

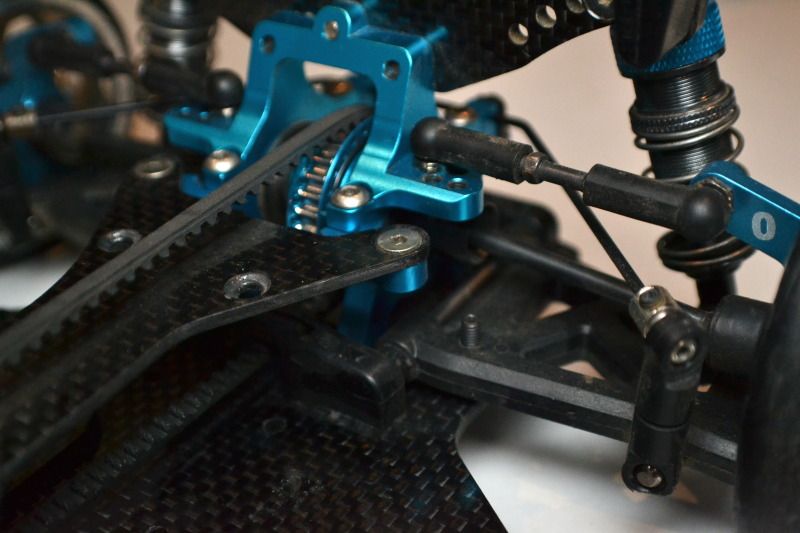

C-Hub delete & Steering Rack:

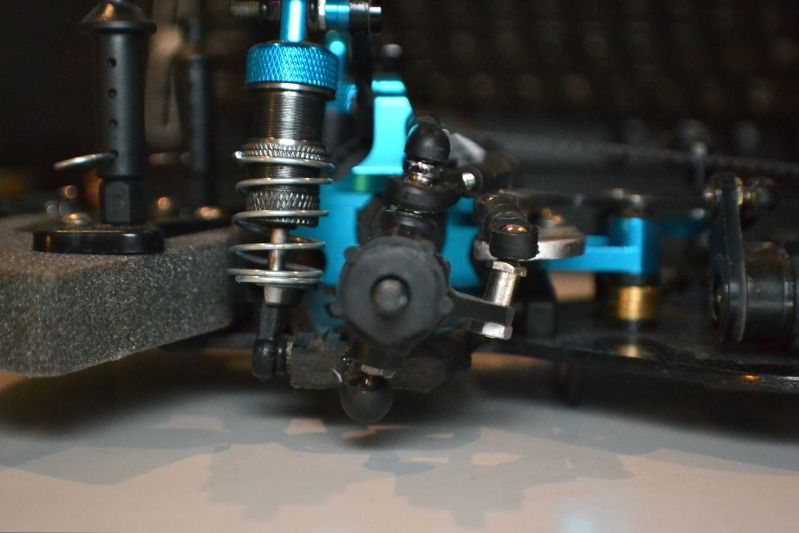

10* caster:

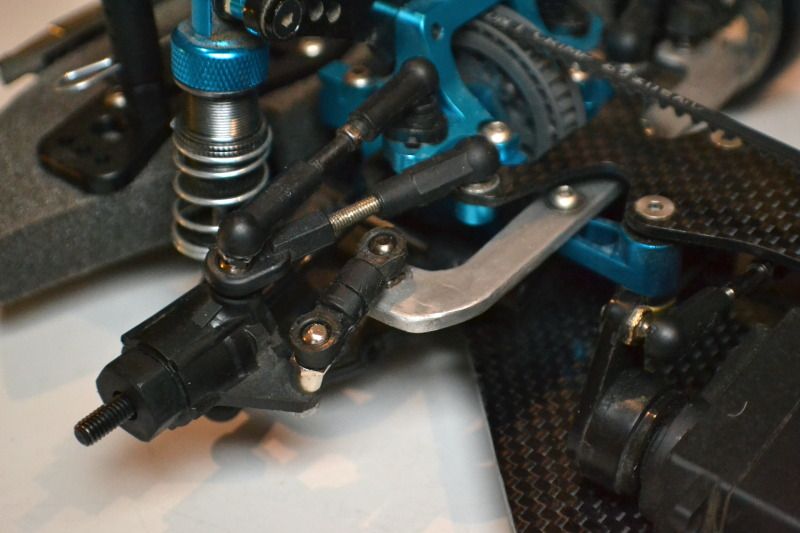

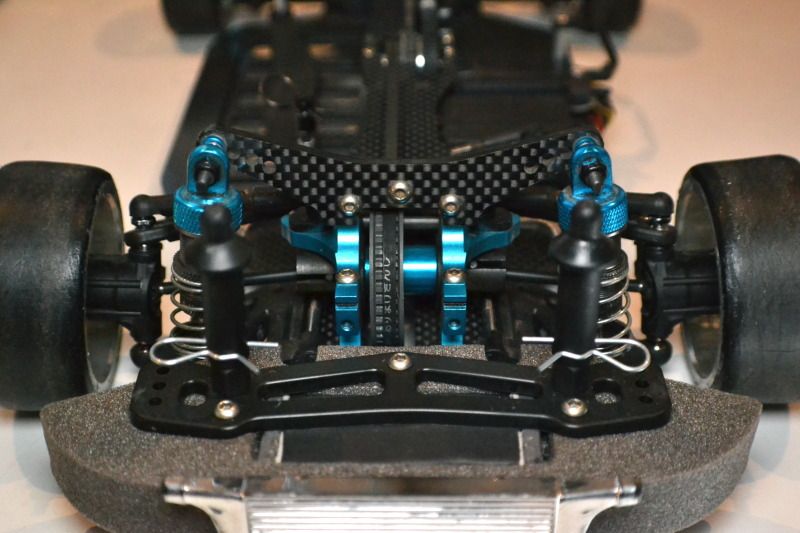

Front suspension & steering angle:

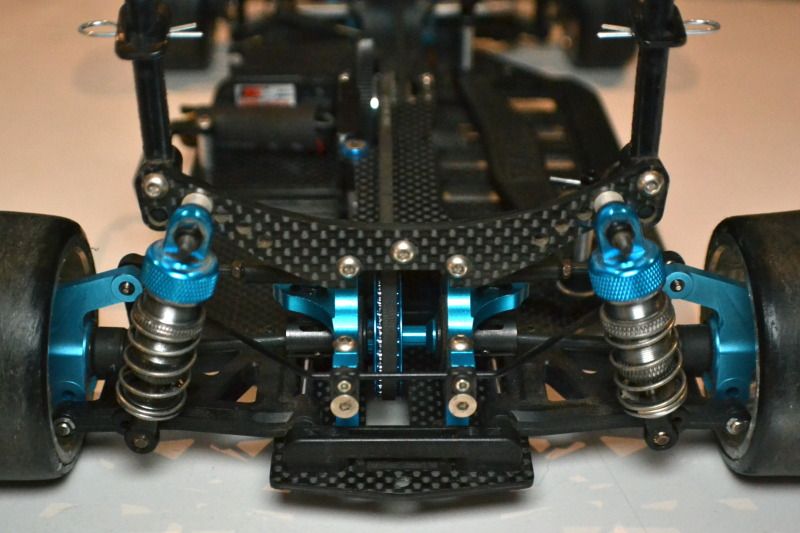

Rear suspension and 0* hubs

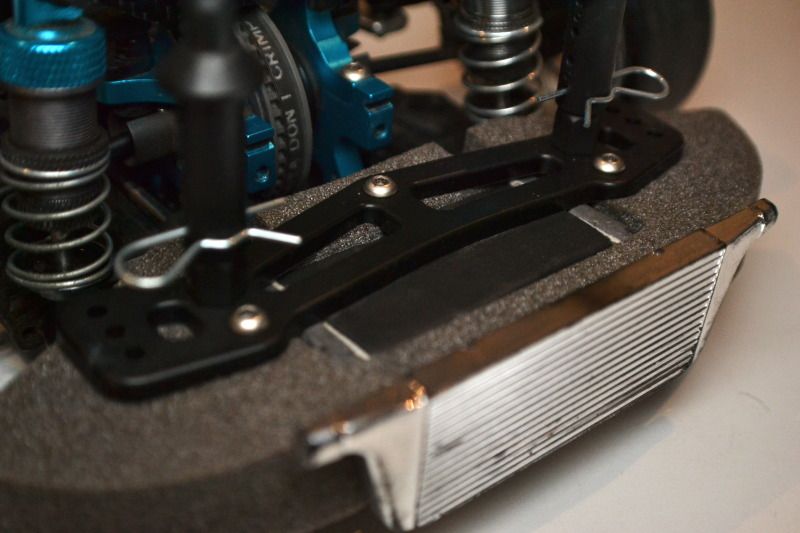

196g bumper weight:

Tc5 hard case lipo retainer:
Last edited by antinnous on Tue Jan 22, 2013 4:39 pm, edited 5 times in total.
MST, Hobbywing, RC OMG, Vertex, Wrap-Up Next, + More!
Top
*¥€$*
Rally Style Drifting
Rally Style Drifting
Posts: 41
Joined: Sun Nov 06, 2011 5:45 pm
Drift Chassis: Yokomo DRB Vertex Edition
Location: Geneva, Switzerland

Re: Tamiya // Penguin // TA05

Postby *¥€$* » Fri May 18, 2012 5:29 am

Very Nice :up:
Home Made Conversion Kit I suppose ?
Top
antinnous
Still Turns In
Still Turns In
Posts: 215
Joined: Wed Apr 04, 2012 10:24 pm
Drift Chassis: Tamiya, MST, Wrap-Up Next, Yokomo
Location: san diego

Re: Tamiya // Penguin // TA05

Postby antinnous » Fri May 18, 2012 5:55 pm

The cf chassis you mean? Nope, It's by penguin r/c.

thanks though!
MST, Hobbywing, RC OMG, Vertex, Wrap-Up Next, + More!
Top
Dr.Fate
Still Turns In
Still Turns In
Posts: 279
Joined: Fri Jan 28, 2011 1:12 pm
Drift Chassis: GPX-R, R31ML, OTA-ZEON & RWD D.D.C.
Location: San Diego

Re: Tamiya // Penguin // TA05

Postby Dr.Fate » Sat May 19, 2012 12:19 am

Yeah when I saw this up close, I WAS LIKE DAMN! Steering is nice!
Top
Valiant_012
Rally Style Drifting
Rally Style Drifting
Posts: 81
Joined: Wed Jan 27, 2010 11:21 pm
Drift Chassis: TA-05vdf
Location: Christchurch NZ

Re: Tamiya // Penguin // TA05

Postby Valiant_012 » Sat May 19, 2012 2:16 am

Wow this looks good.
It's nice to see an orignal lay out TA-05.
It looks like my old one, I had to check your location to see if it was.
Top
*¥€$*
Rally Style Drifting
Rally Style Drifting
Posts: 41
Joined: Sun Nov 06, 2011 5:45 pm
Drift Chassis: Yokomo DRB Vertex Edition
Location: Geneva, Switzerland

Re: Tamiya // Penguin // TA05

Postby *¥€$* » Sat May 19, 2012 12:05 pm

rwdanthony wrote:The cf chassis you mean? Nope, It's by penguin r/c.

thanks though!


Sorry, I even don't know this Upgrade Kit... |:-|
Top
User avatar
awdracer
Still Turns In
Still Turns In
Posts: 111
Joined: Sat May 22, 2010 1:29 am
Drift Chassis: ta05
Location: mobile al

Re: Tamiya // Penguin // TA05

Postby awdracer » Tue May 22, 2012 2:56 pm

*¥€$* wrote:
rwdanthony wrote:The cf chassis you mean? Nope, It's by penguin r/c.

thanks though!


Sorry, I even don't know this Upgrade Kit... |:-|


http://penguinrc.com/products/tamiya/p2020.html
i owned it before he did..
Top
antinnous
Still Turns In
Still Turns In
Posts: 215
Joined: Wed Apr 04, 2012 10:24 pm
Drift Chassis: Tamiya, MST, Wrap-Up Next, Yokomo
Location: san diego

Re: Tamiya // Penguin // TA05

Postby antinnous » Tue May 22, 2012 4:09 pm

yeap, awdracer had this chassis before me and was in this state:
