GenkiRF's Yokomo DIB

Postby GenkiRF » Tue Apr 02, 2013 5:57 pm

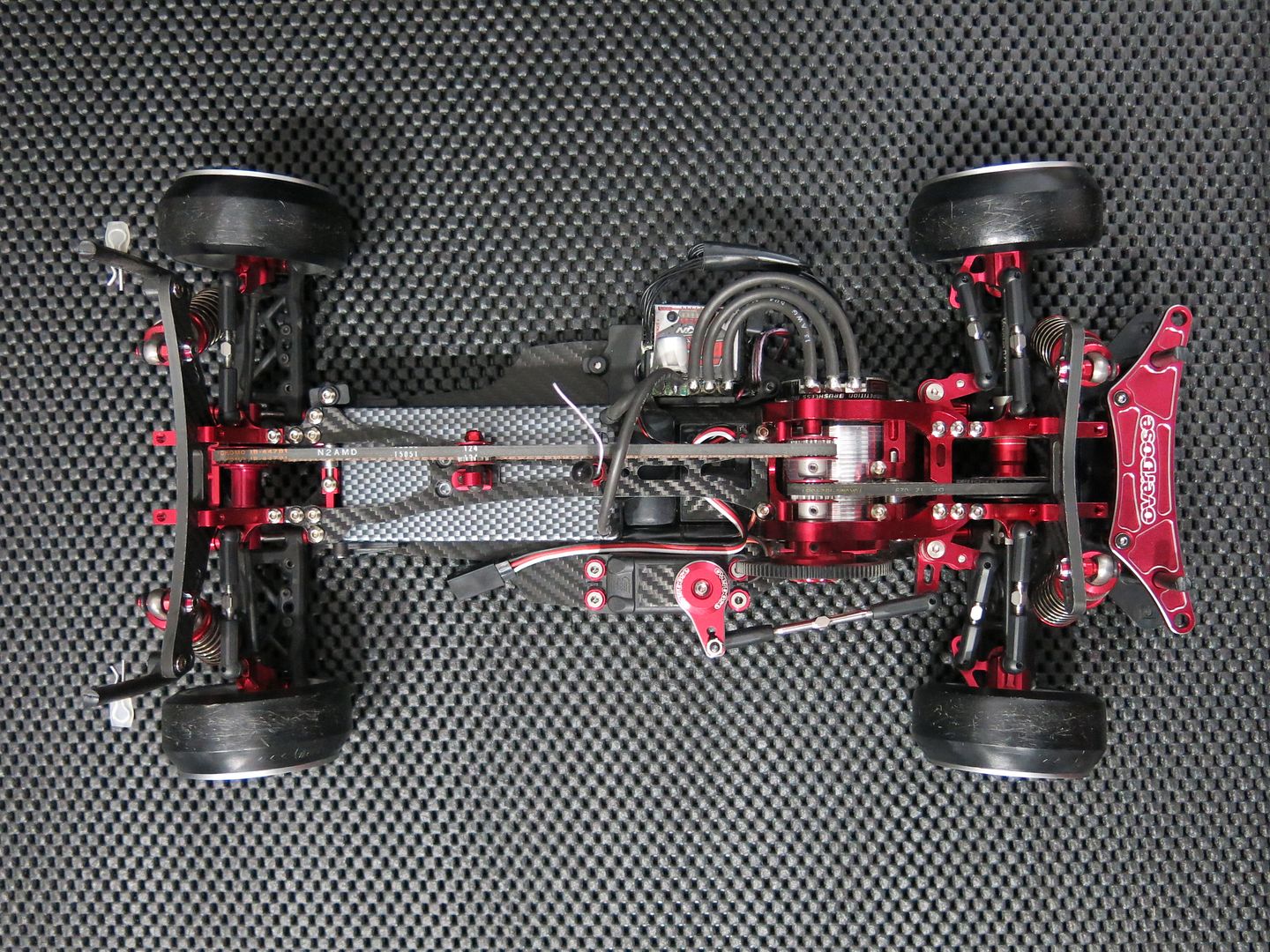

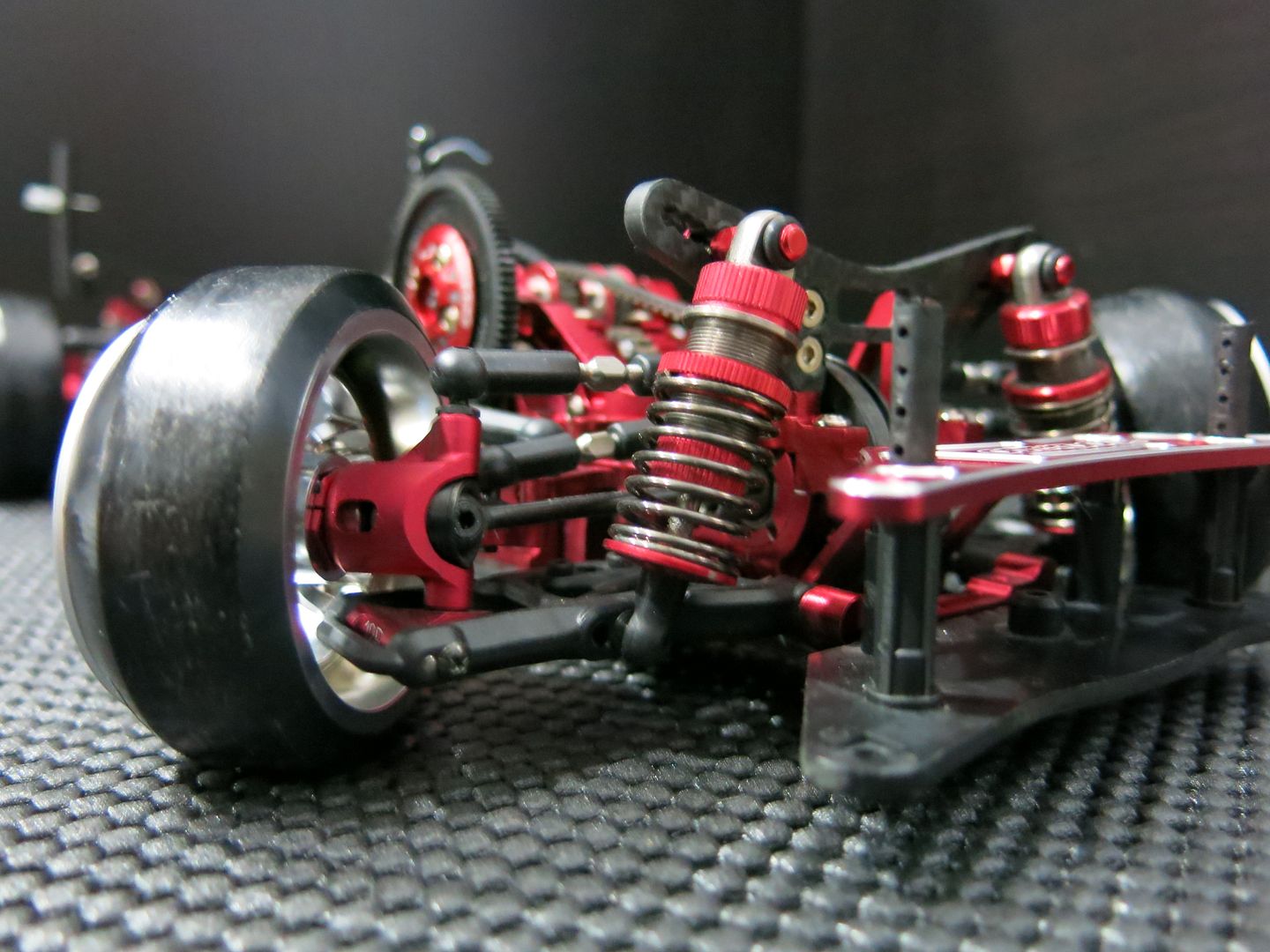

GenkiRF's MadHouse Yokomo DIB

Make: Yokomo
Model: DIB
Date: Apr/01/2013

Overview:
Track Surface: Concrete

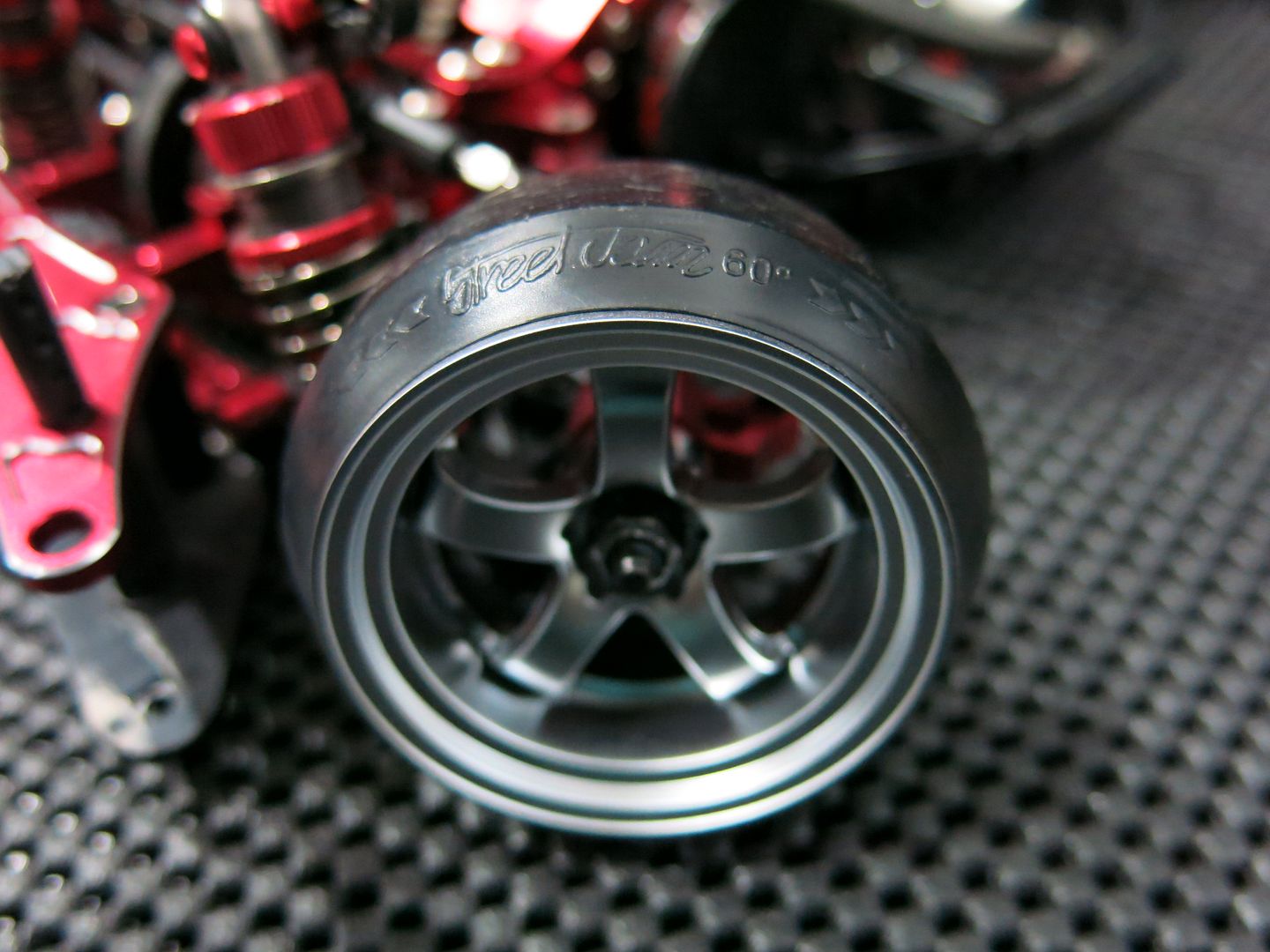

Tire: Street Jam Hard

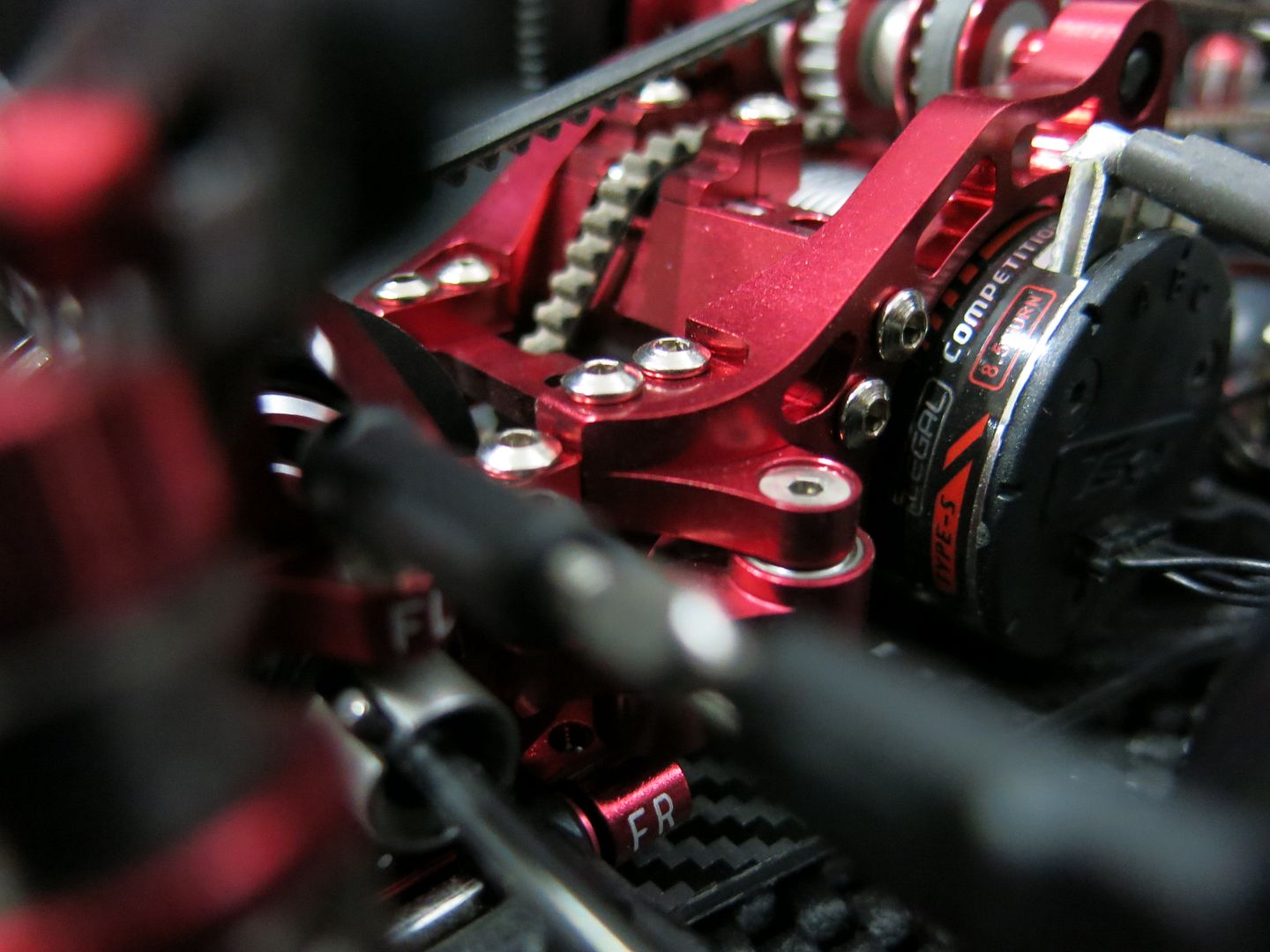

Motor & ESC: Tekin Redline 8.5T / Tekin RS Sensored
Radio: Sanwa MT-4 w/ Telemetry
Servo: Savox 1251mg
Battery: Eagle Racing 4200mah LiPo
Other: Model Garage Power Cap

Front:
Camber: -9*
Toe: 2* Out
Kick Up: N/A
Caster Hubs: 12*
Ride Height: 7.5mm
Springs: RC Art
Bumper Weight: N/A
Sway-Bar: N/A

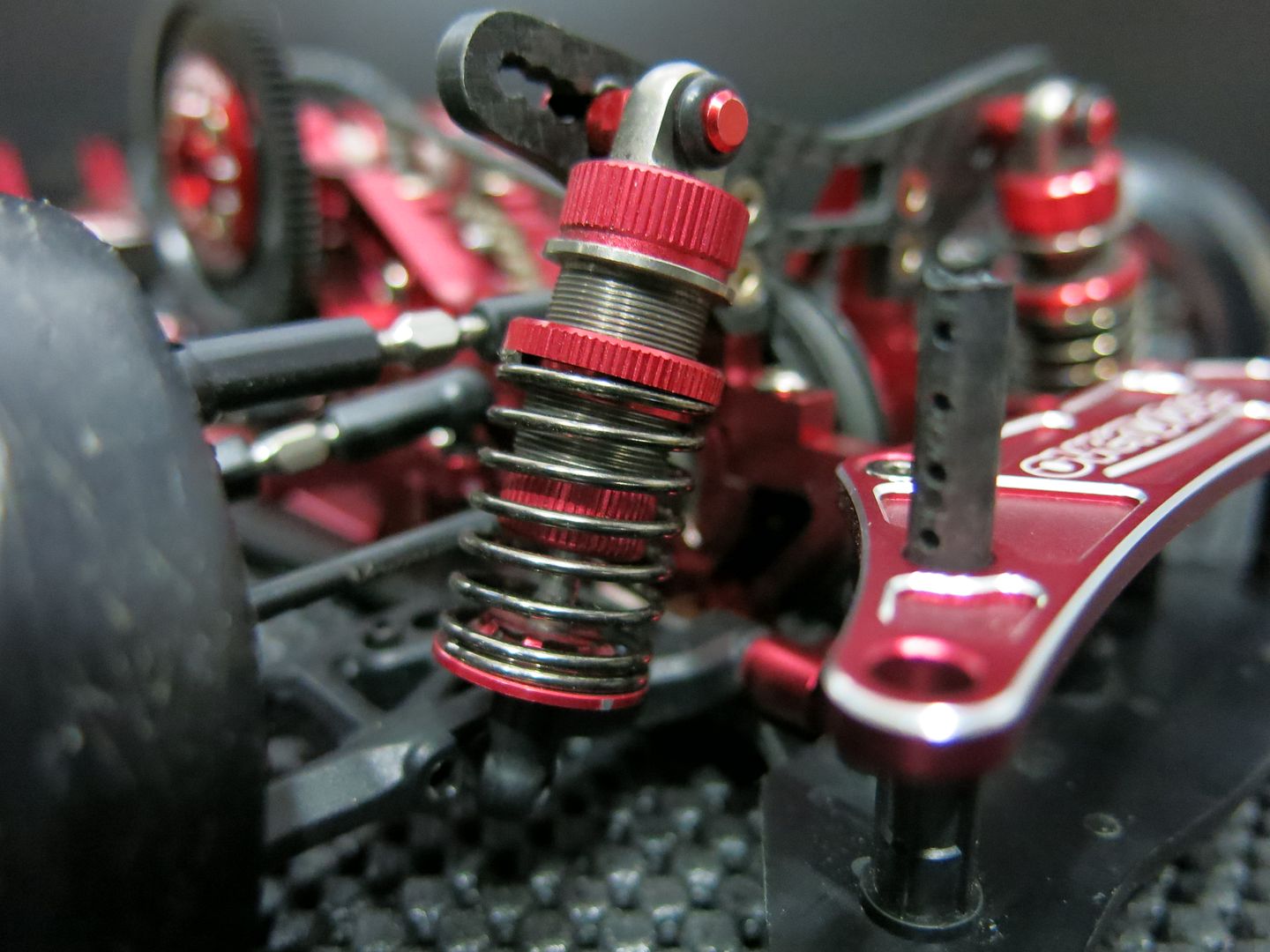

Shock Oil: Associated 60wt (800cst)
Upper Shock Position: Fifth hole from the outside
Lower Shock Position: Inner most position
Diff: One-Way

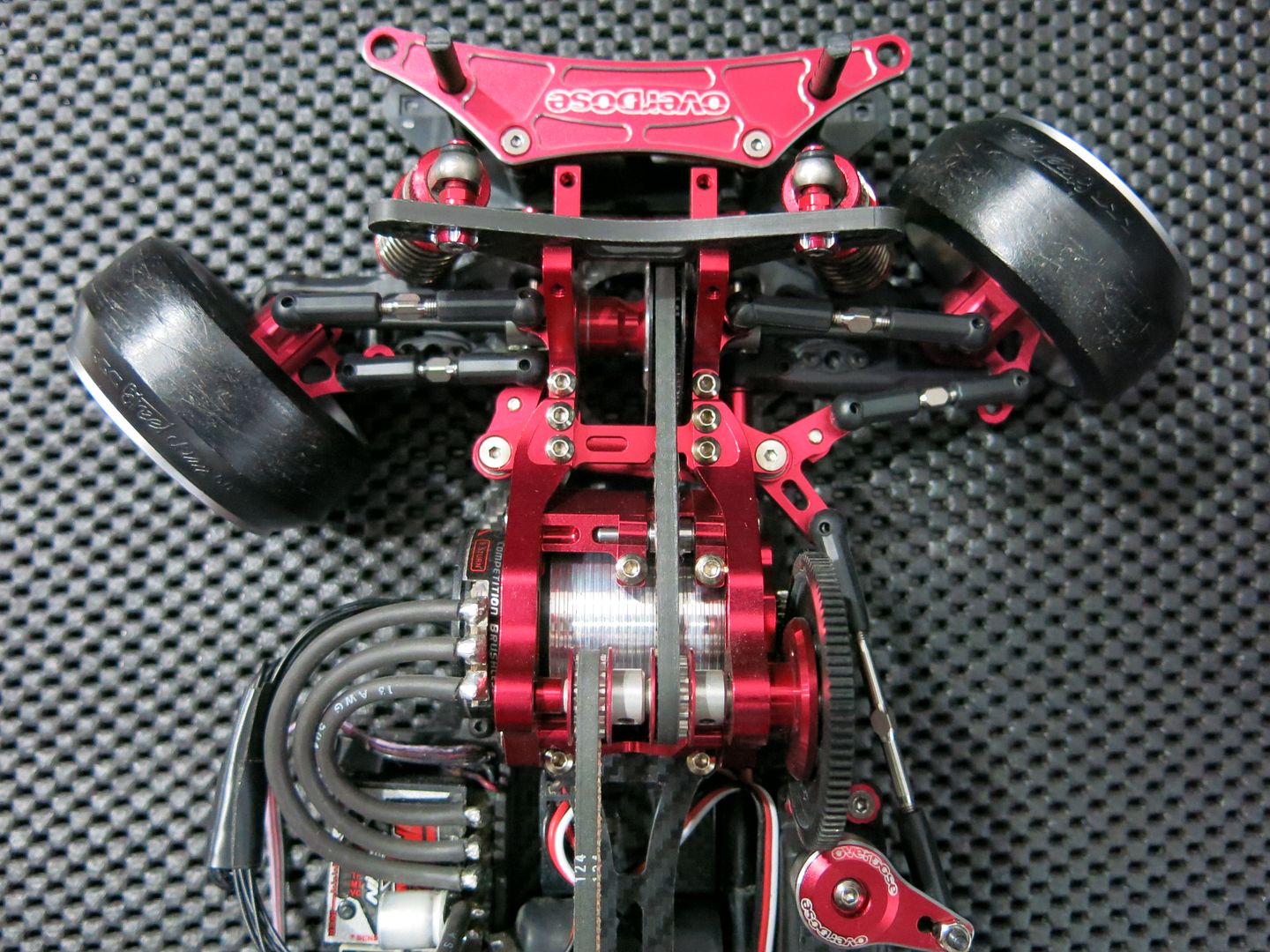

Rear:
Camber: -5*
Toe Block: 0*
Ride Height: 6mm
Springs: RC Art
Sway-Bar: N/A
Shock Oil: Associated 30wt (350cst)
Shock Position: Second hole from the outside
Diff: Spool
Other: 2mm Anti-Squat

Drive Train:
Front: 40t
Center: 15t/15t
Rear: 1.8 FCD Kit
CS Ratio: 1.8 / 80%

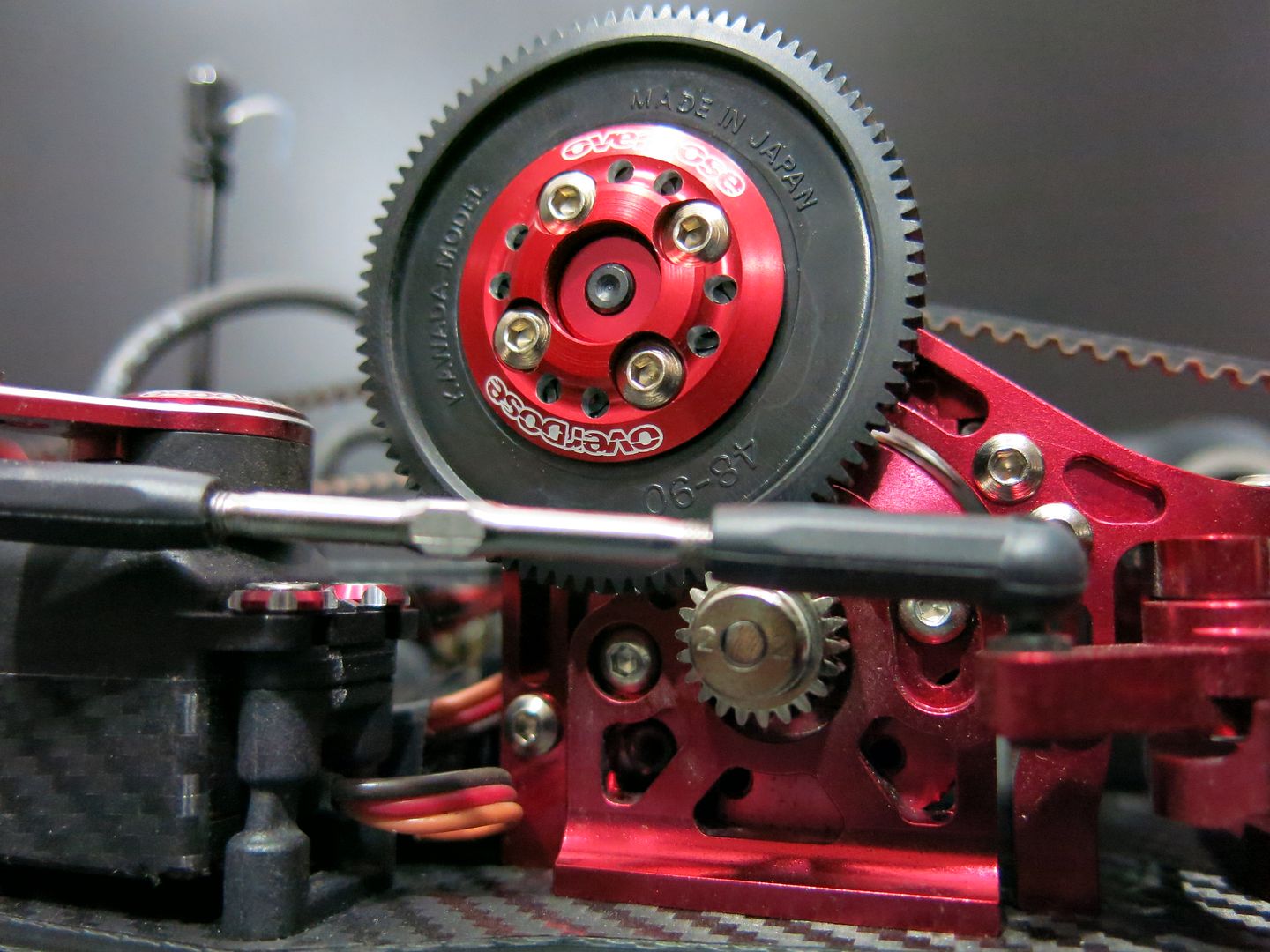

Spur: 90t 48p
Pinion: 22t 48p
Other: none









Check out my blog @ http://madhouserc.blogspot.ca/

valentin
Site Admin
Site Admin
Posts: 202
Joined: Tue Jan 05, 2010 8:16 pm
Drift Chassis: D-Like Re-R
Location: Garden Grove, CA
Contact:

Re: GenkiRF's Yokomo DIB

Postby valentin » Tue Apr 02, 2013 11:26 pm

very cool! did you wrap the towers/chassis?

GenkiRF
Rally Style Drifting
Rally Style Drifting
Posts: 73
Joined: Sun Sep 02, 2012 7:17 pm
Drift Chassis: Yokomo DIB 1.8
Location: British Columbia, Canada

Re: GenkiRF's Yokomo DIB

Postby GenkiRF » Wed Apr 03, 2013 12:34 am

Thanks! Yea, it's a carbon wrap job. I didn't like the look of SSG :lol:
Check out my blog @ http://madhouserc.blogspot.ca/

FunkRenegade
Still Turns In
Still Turns In
Posts: 202
Joined: Sun Feb 19, 2012 8:24 pm
Drift Chassis: brokomo DIB
Location: Long Island

Re: GenkiRF's Yokomo DIB

Postby FunkRenegade » Thu Apr 04, 2013 6:54 am

:up:

grapejuice
Rally Style Drifting
Rally Style Drifting
Posts: 42
Joined: Thu Aug 02, 2012 7:10 am
Drift Chassis: Yokomo DRB 1.5
Location: Denver, CO

Re: GenkiRF's Yokomo DIB

Postby grapejuice » Mon Apr 08, 2013 7:08 am

The black and red looks really good! :up: much better than ssg

GenkiRF
Rally Style Drifting
Rally Style Drifting
Posts: 73
Joined: Sun Sep 02, 2012 7:17 pm
Drift Chassis: Yokomo DIB 1.8
Location: British Columbia, Canada

Re: GenkiRF's Yokomo DIB

Postby GenkiRF » Mon Oct 21, 2013 12:34 am

I liked the black too... but I have since removed it and went back to SSG. I have plans to go to black carbon in the future again though :D

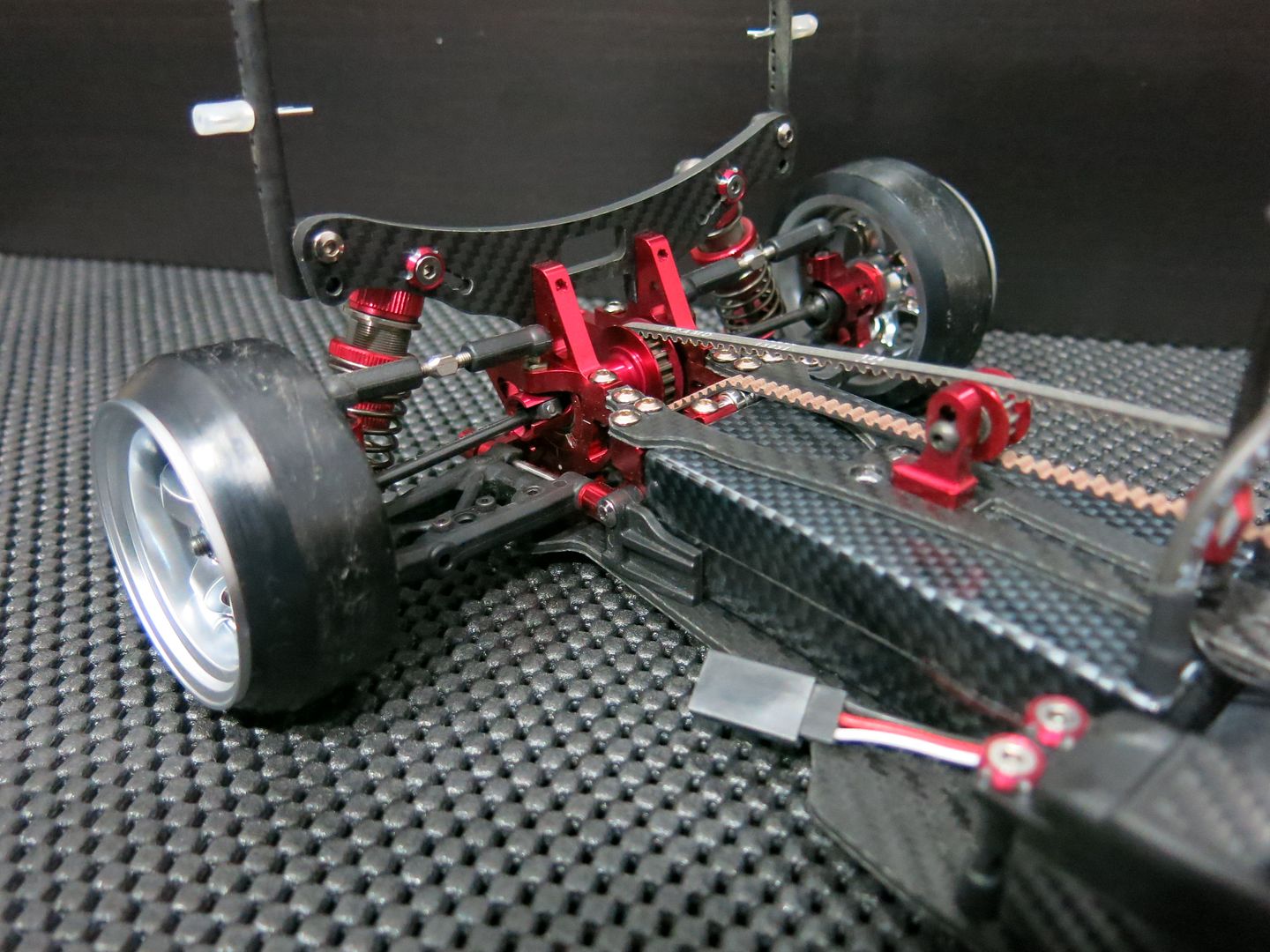

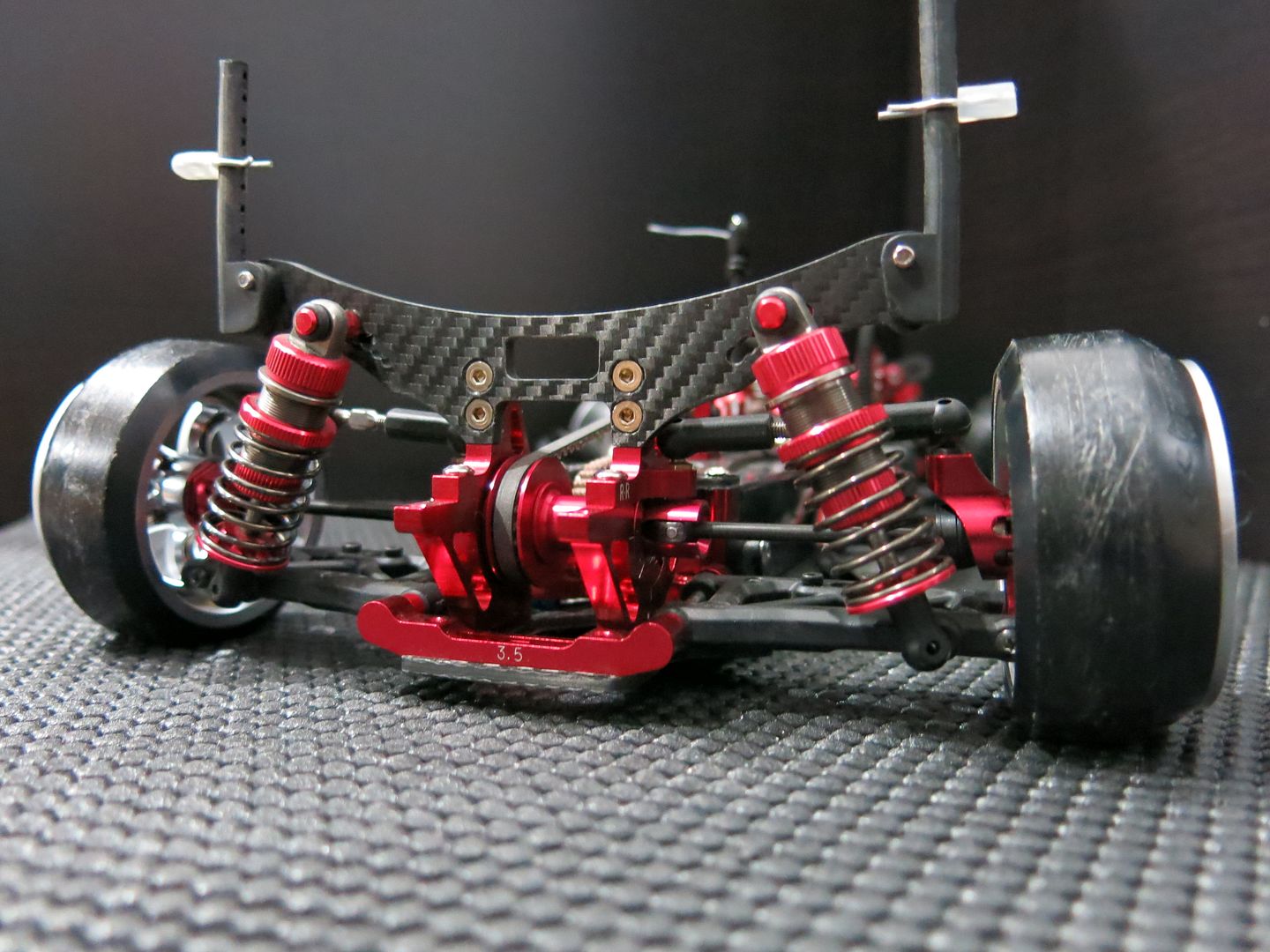

For now, I decided to Frankenstein together a rear active camber link setup for the car. I'm still in the middle of tuning the setup with the link setup...

I also installed a Type-C style front suspension. I kinda half assed it for now putting it together with what I had in my spare parts bins... it works just fine, but it's not exactly ideal. I'll rework the front setup down the road, upgrading the front knuckles and using appropriate hardware...
Check out my blog @ http://madhouserc.blogspot.ca/
