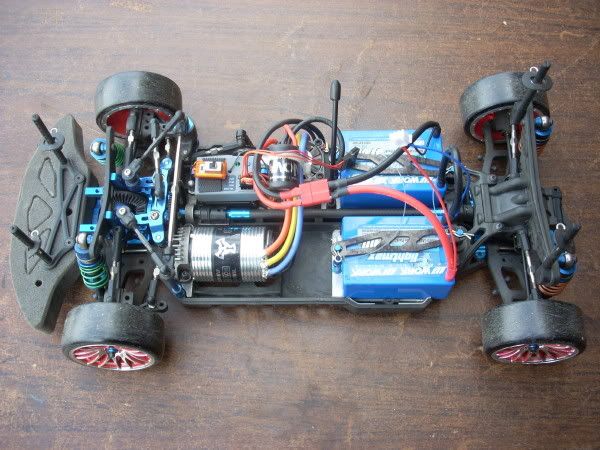

Make: Yokomo
Model: CGM
Date: Jan 10th 2010
Track surface: Polished concrete
Tire: Kawada Plastic Drift Tier ( Medium )
Motor & ESC: Novak Slydr with Drift Spec 6.5 Motor

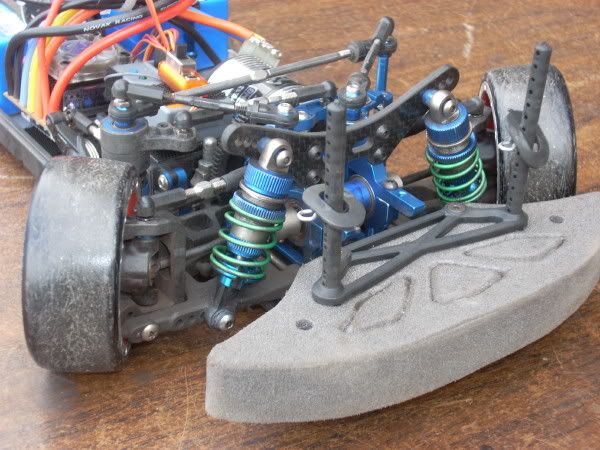

Front
Camber: -8
Toe: 0
Kick up: Front 2mm
Caster hubs: 4
Ride height: 5mm
Bumper weight: 0
Springs: Yokomo Swift Hared Green
Trailing Steering Block: 0
Sway-Bar: None
Shock Oil: Yokomo #450
Other:

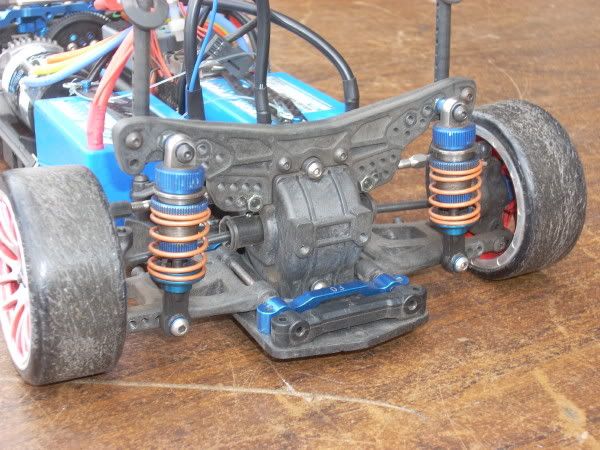

Rear
Camber: -1
Toe: in 2
Kick up: Front 1mm
Ride height: 6mm
Springs: Yokomo Swift Medium Hard Blown
Sway-Bar: None
Shock Oil: Yokomo #450
Other:
Drive Train
Gearing: Front Stock 40x17, Rear 27x17 Yokomo FCD 1.5 Axle, Overdrive ratio 1.48
Front: One-Way
Center: Solid
Rear: Yokomo FCD 1.5 Axle
Spar: 48pt 84t
Pinion: 19t
Other:
