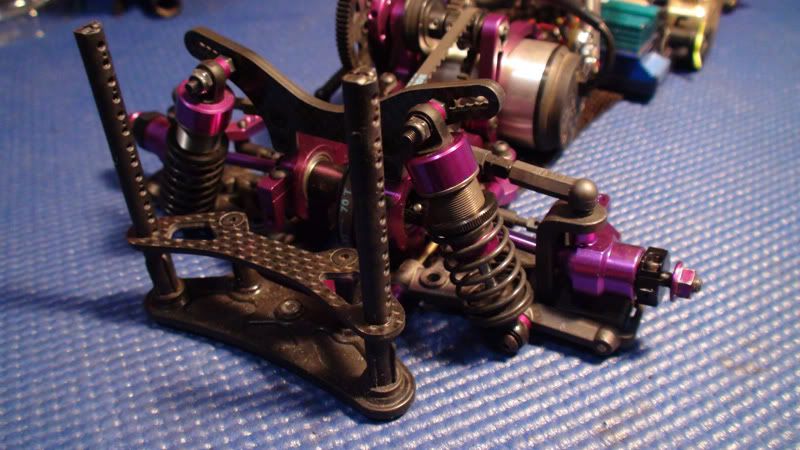

Eichkay's Hot Bodies TC-D

Postby eichkay » Thu Jun 10, 2010 1:06 am

Make: Mot Bodies
Model: TC-D

Date: 6-10-10
Track surface: Asphalt
Tire: HPI T-Drifts Standard

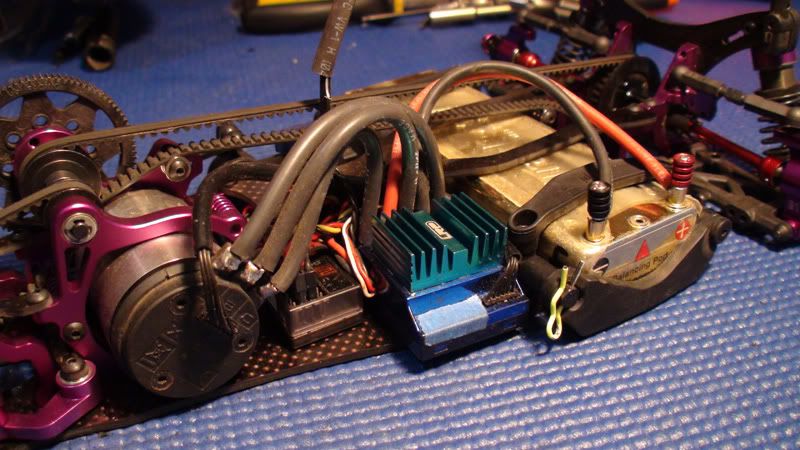

Motor & ESC: LRP Sphere Comp Spec and X11 8.5

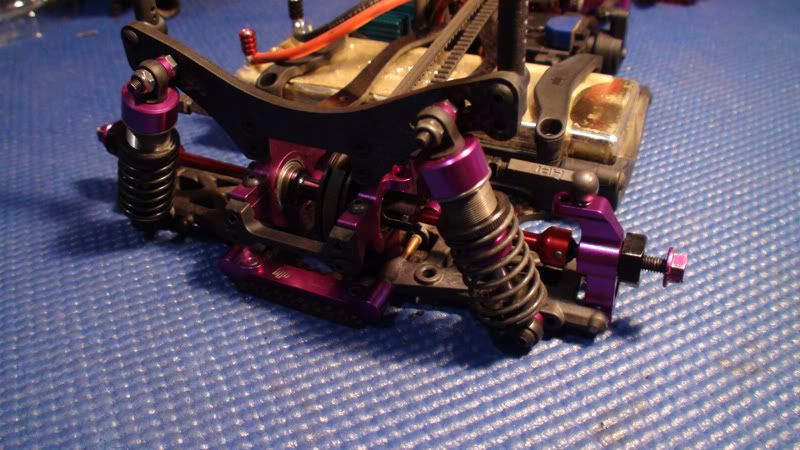

Front

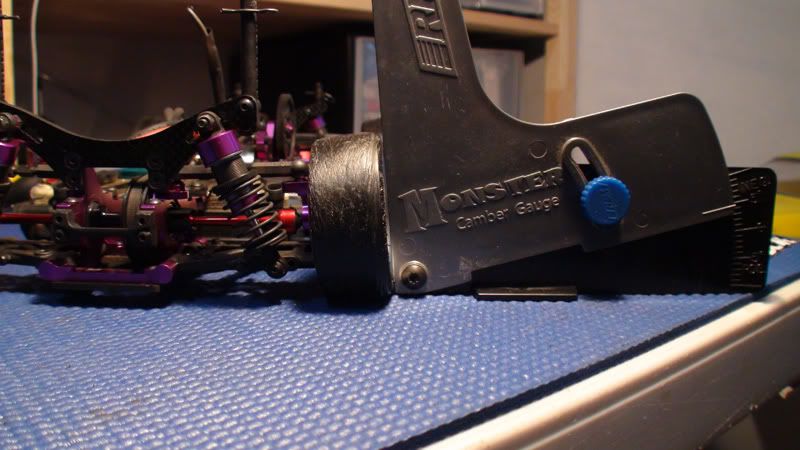

Camber: -9º
Toe: 0
Kick up: 0
Caster hubs: Kit
Ride height: 5.5mm
Springs: Kit
Bumper weight: n/a
Trailing Steering Block: most outer hole
Sway-Bar: n/a
Shock Oil: 120wt
Other:

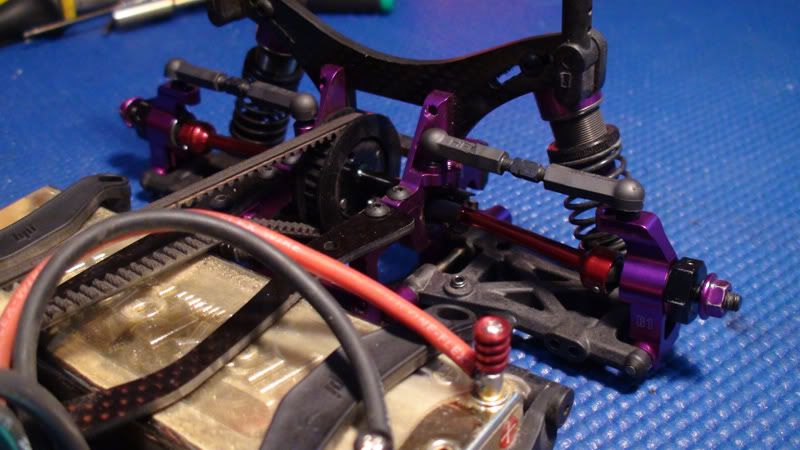

Rear

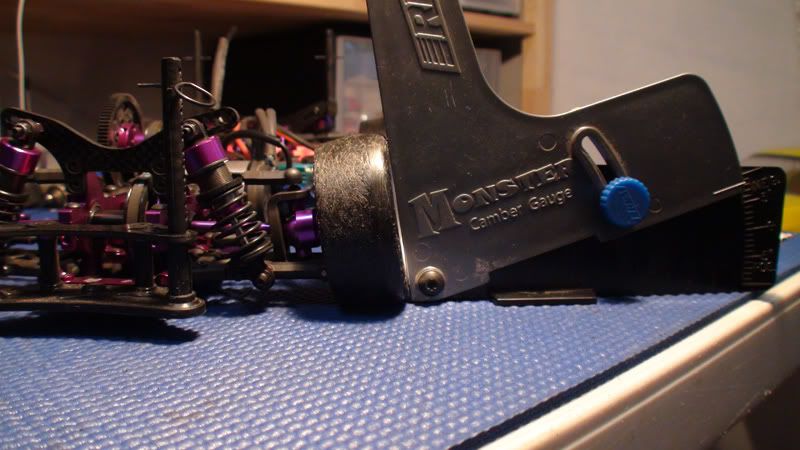

Camber: -5º
Toe: 0.5º
Kick up: 0
Ride height: 8mm
Springs: kit
Sway-Bar: n/a
Shock Oil: 30wt
Other: ive used 1º hubs and swapped sides to get .5º toe in on the rear with 1.5º toe block

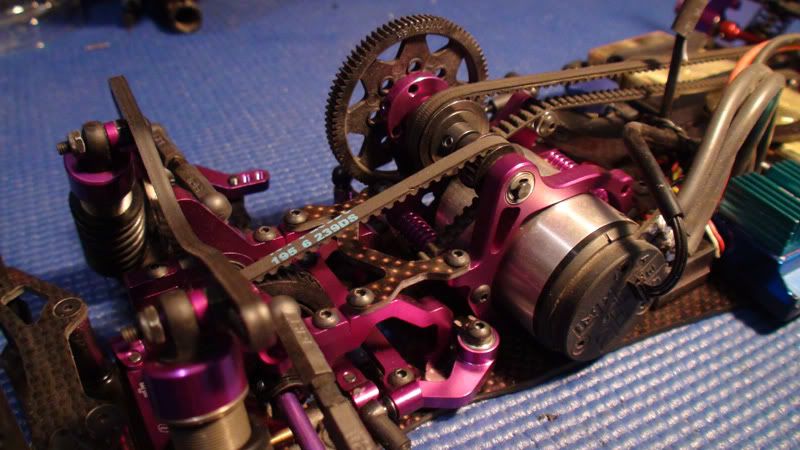

Drive Train

Gearing: 87.5%
Front: 39
Center: 13/20
Rear: 32 ta04

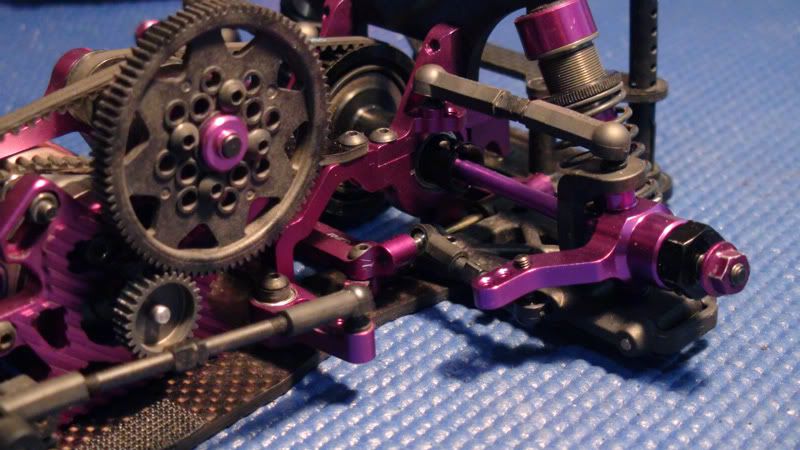

Spur: 87
Pinion: 32
Other:
