Hot Bodies Cyclone S

Post your full Counter-Steer setup specs here.
User avatar
tokeyo83
Banned and Dumb
Posts: 542
Joined: Wed Jan 06, 2010 2:23 am
Drift Chassis: HB Cyclone TC-H / Yokomo MR4-TC DP (WIP)
Location: Artesia, Ca

Hot Bodies Cyclone S

Postby tokeyo83 » Thu Jan 14, 2010 8:57 pm

Hot Bodies Cyclone S

Make: Hot Bodies
Model: Cyclone S

Date: Feb 13-14 2010
Track surface: Polished Concrete
Tire: Kawada Plastics Tire (Med)
Motor & ESC: Novak SS5800 & Novak Super Sport

Front

Camber: -10deg* no longer onikyan :cry:
Toe: almost 0deg
Kick up: 8mm
Caster hubs: 6deg
Ride height: 4.5mm*
Springs: Yokomo Titanium Soft (yellow)*
Bumper weight: 90grams(9 yokomo bumper weights)*
Trailing Steering Block: Stock
Sway-Bar: None
Shock Oil: 20wt
Other: TC5 Steering Bell Crank*

Rear

Camber: -10deg
Toe: 2.5
Kick up: None
Ride height: 16mm
Springs: Yokomo Titanium Soft (yellow)*
Sway-Bar: None
Shock Oil: 20wt
Other:

Drive Train

Gearing: Front: 40T/15T Rear: 25T/32T
Front: One-way
Center: 15T One-way
Rear: Solid
Spur: 83T 48pitch
Pinion: 18T
Other: 40T AE, 15T Yokomo, 25T Atomic, 32T 3Racing

Other:
    112g of weight on the battery side
    Ugraded to aluminum bulkheads, CF shock towers, WCE bottom deck (thanks randy :D ),and lipo top deck

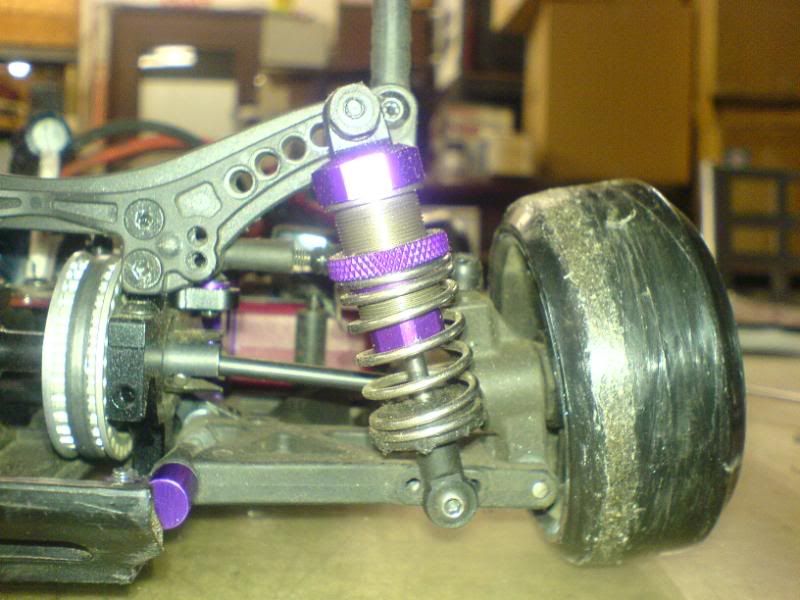

Front Shock Position

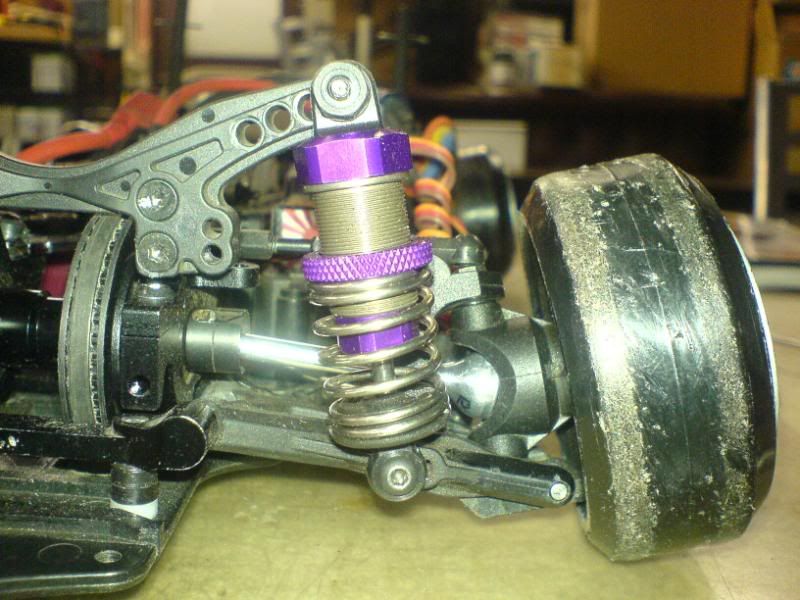

Rear Shock Position

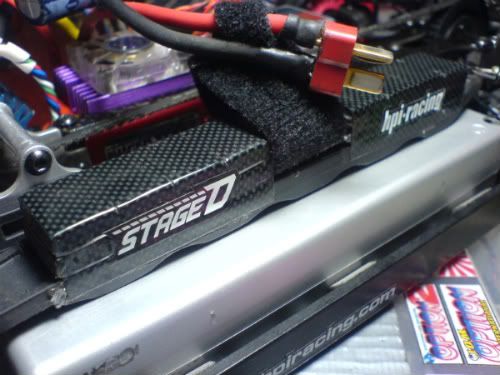

Battery weight

"there are no stupid questions, just stupid people"

User avatar
tokeyo83
Banned and Dumb
Posts: 542
Joined: Wed Jan 06, 2010 2:23 am
Drift Chassis: HB Cyclone TC-H / Yokomo MR4-TC DP (WIP)
Location: Artesia, Ca

Re: Hot Bodies Cyclone S

Postby tokeyo83 » Mon Feb 22, 2010 1:29 pm

New setup. Changes are in red. Changed up my shock positions will post pics soon.
"there are no stupid questions, just stupid people"

evanstewy
Founder
Founder
Posts: 148
Joined: Tue Jan 05, 2010 7:03 pm
Drift Chassis: Yokomo MR4TC-BD
Location: Henderson, NV

Re: Hot Bodies Cyclone S

Postby evanstewy » Mon Feb 22, 2010 1:38 pm

I have 70g of weight up front and I want to try the extra weight up front with the more ride height in the rear. Katsumi said that his BD didn't work out well that way but you guys really seem to like that setup.

It's crazy I have almost the same side weight just by taking weight off a little bit at a time and feeling the grip to slide ratio while driving.

I think I might give that setup a try after I get used to the setup I have right now.

sangstahdorifuto
Site Mod
Site Mod
Posts: 120
Joined: Wed Jan 06, 2010 1:17 am
Drift Chassis: Yokomo Driftmaster
Location: Cerritos, CA
Contact:

Re: Hot Bodies Cyclone S

Postby sangstahdorifuto » Mon Feb 22, 2010 3:28 pm

nice ulys your wheels look nuts

User avatar
tokeyo83
Banned and Dumb
Posts: 542
Joined: Wed Jan 06, 2010 2:23 am
Drift Chassis: HB Cyclone TC-H / Yokomo MR4-TC DP (WIP)
Location: Artesia, Ca

Re: Hot Bodies Cyclone S

Postby tokeyo83 » Mon Mar 15, 2010 2:57 am

update and pics from sat session Mar 4th 2010
"there are no stupid questions, just stupid people"

DorkyMK3
CSJ Elite
Posts: 146
Joined: Sun Jan 17, 2010 5:02 am
Drift Chassis: Hot Bodies/ HPI TC-FD cs2.0
Location: Bellflower, CA

Re: Hot Bodies Cyclone S

Postby DorkyMK3 » Mon Mar 15, 2010 4:09 pm

insane! haha will we see this run at rcx this weekend?
"I got no money in the Bank, but im still going Sideways"

User avatar
tokeyo83
Banned and Dumb
Posts: 542
Joined: Wed Jan 06, 2010 2:23 am
Drift Chassis: HB Cyclone TC-H / Yokomo MR4-TC DP (WIP)
Location: Artesia, Ca

Re: Hot Bodies Cyclone S

Postby tokeyo83 » Tue Mar 16, 2010 12:41 am

maybe
"there are no stupid questions, just stupid people"

User avatar
tokeyo83
Banned and Dumb
Posts: 542
Joined: Wed Jan 06, 2010 2:23 am
Drift Chassis: HB Cyclone TC-H / Yokomo MR4-TC DP (WIP)
Location: Artesia, Ca

Re: Hot Bodies Cyclone S

Postby tokeyo83 » Thu Apr 01, 2010 12:37 am

went back to the 6deg caster blocks :cry: the 10deg blocks were gonna break soon, so before they crap out i swapped em. gonna try different overdrive setups this weekend as well.
"there are no stupid questions, just stupid people"

User avatar
tokeyo83
Banned and Dumb
Posts: 542
Joined: Wed Jan 06, 2010 2:23 am
Drift Chassis: HB Cyclone TC-H / Yokomo MR4-TC DP (WIP)
Location: Artesia, Ca

Re: Hot Bodies Cyclone S

Postby tokeyo83 » Mon Apr 19, 2010 1:17 am

Since my chassis isn't really a Cyclone S anymore I am not going to update this thread. Settings up top is pretty good setup with 108% (2.08)

this is what it evolved to ;) : http://csjunkies.com/viewtopic.php?f=34&t=643
"there are no stupid questions, just stupid people"
